Chart C1E - P/S Pressure Switch Signal Check

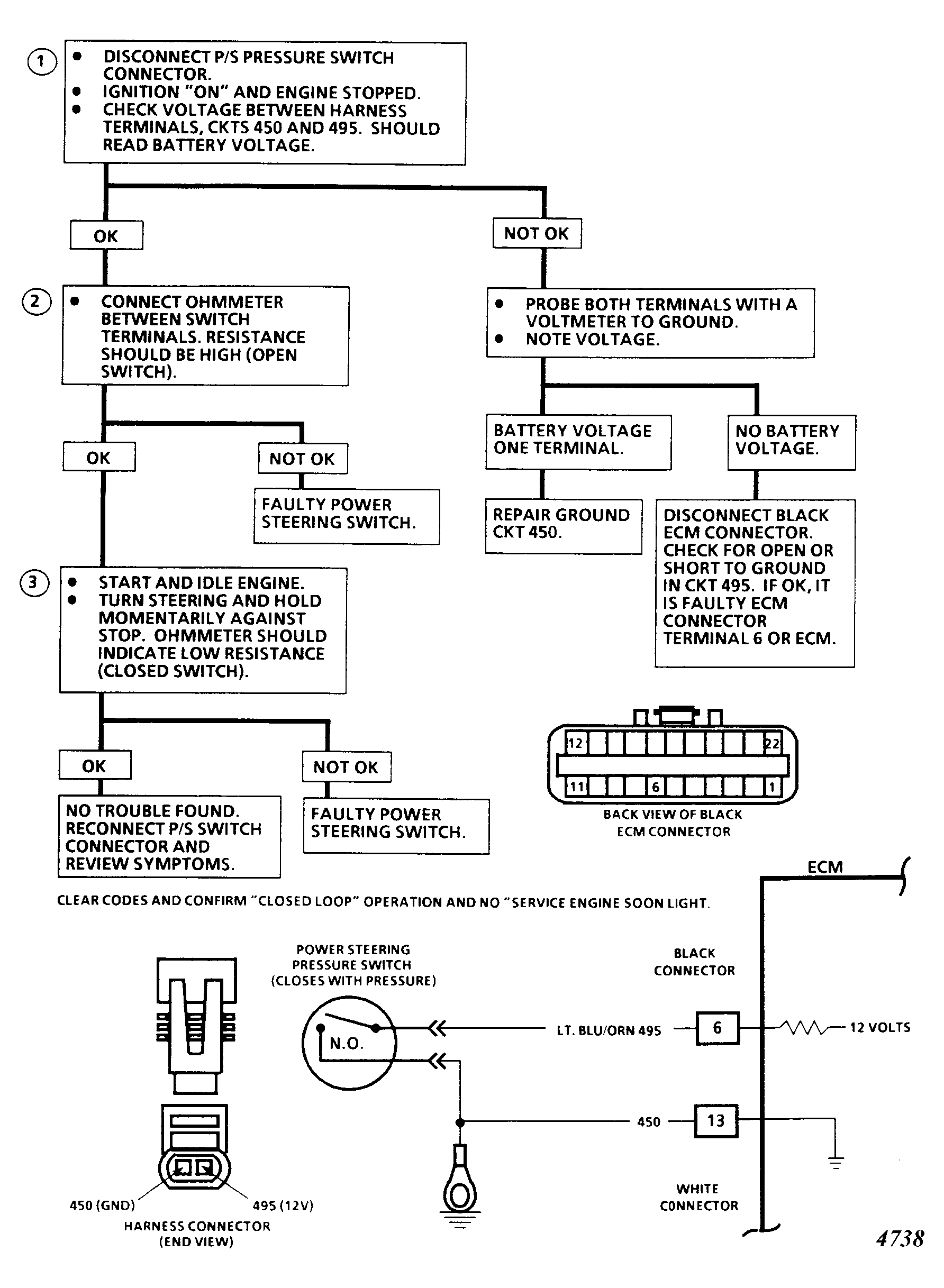

Fig 1: Chart C1E, P/S Pressure Switch Signal Flow Chart

G4738

Fig 2: Chart C1E, P/S Pressure Switch Signal Flow Chart

GB0048030
