Diagnostic Circuit Check

If complaint is related to "CHECK ENGINE" lamp, this check will lead to most likely problem area. Enter diagnostics and record stored trouble codes. Unless otherwise directed by applicable trouble code chart, always begin diagnosis with lowest numbered code. Refer to appropriate trouble code chart.

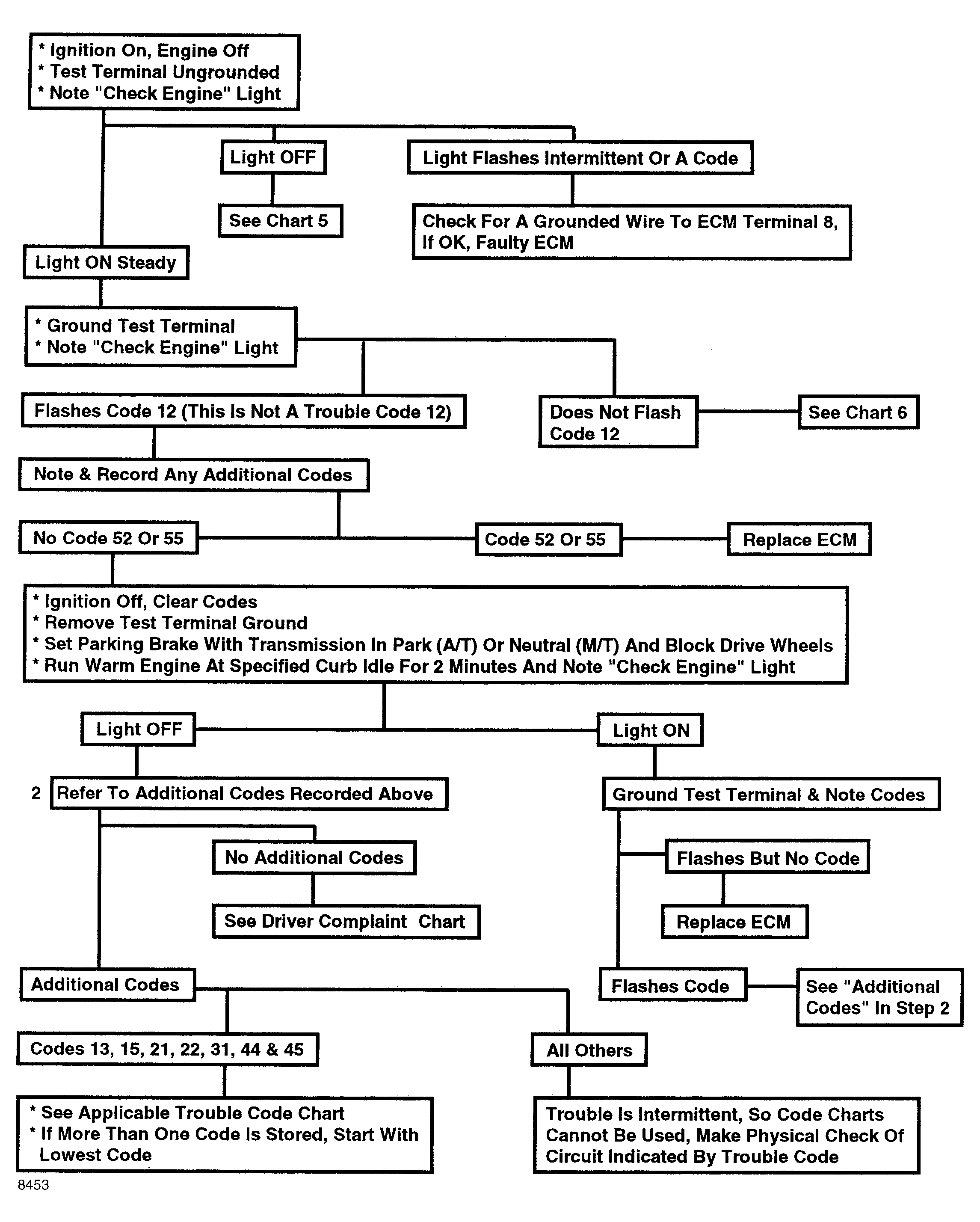

Fig 1: Flow Chart - Diagnostic Circuit Check
G8453

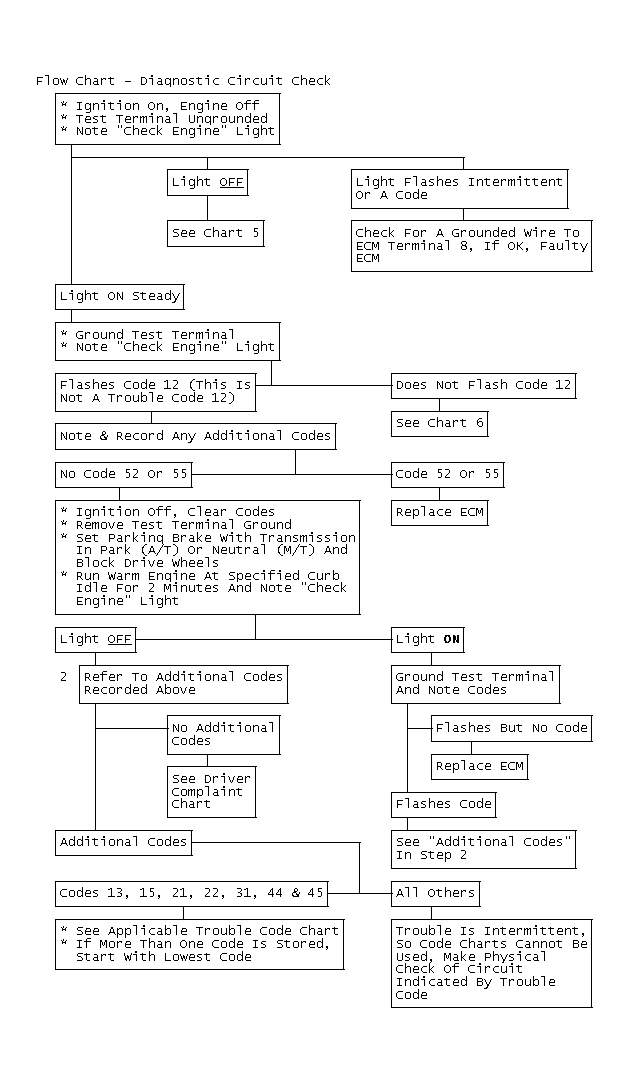

Fig 2: Flow Chart - Diagnostic Circuit Check
GB0047668
