Code 52 - Faulty ECM (Ram Error)
Code 52 - Faulty ECM (Ram Error)

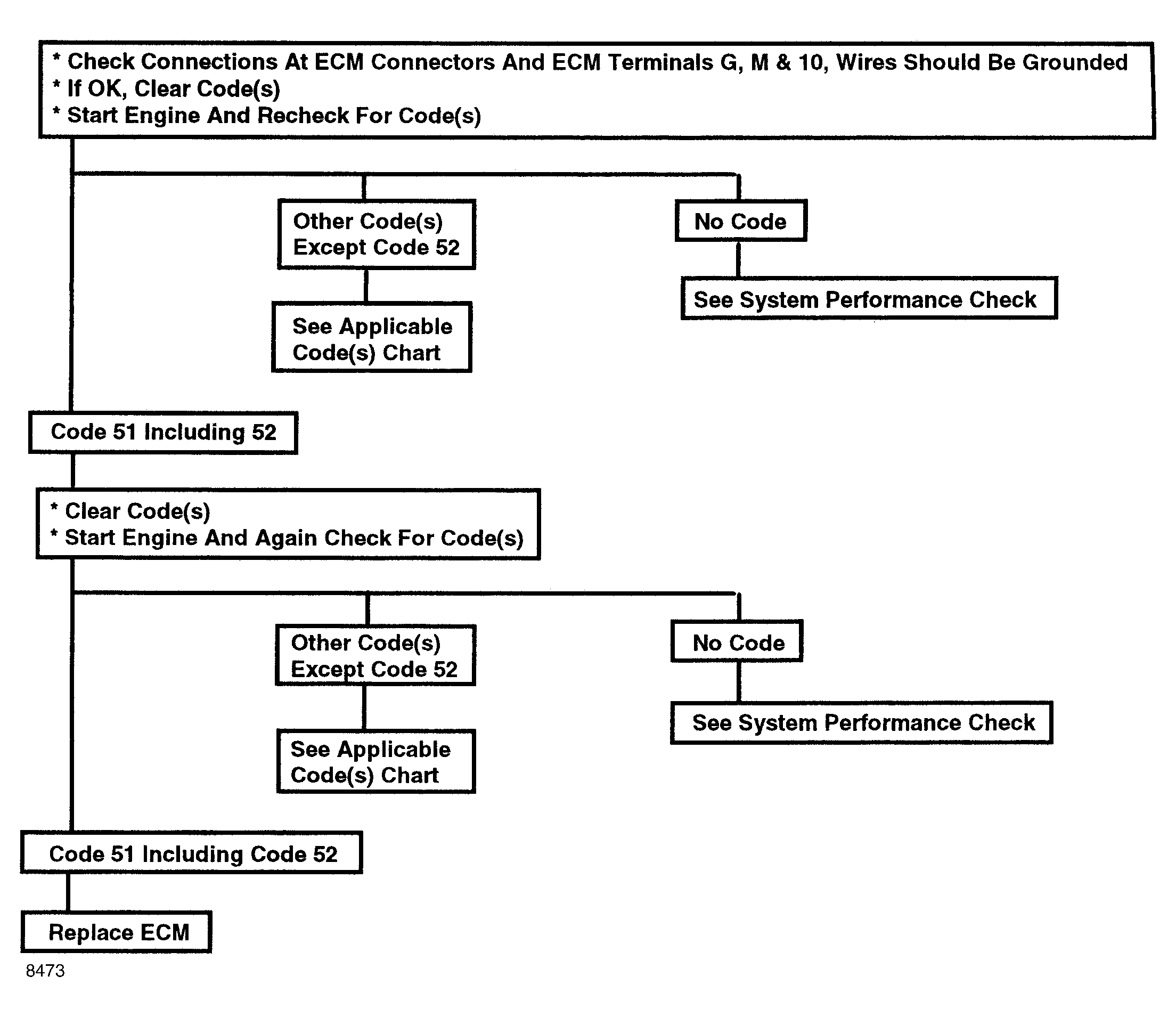

Fig 1: Flow Chart, Trouble Code 52 - Faulty ECM (RAM Error)

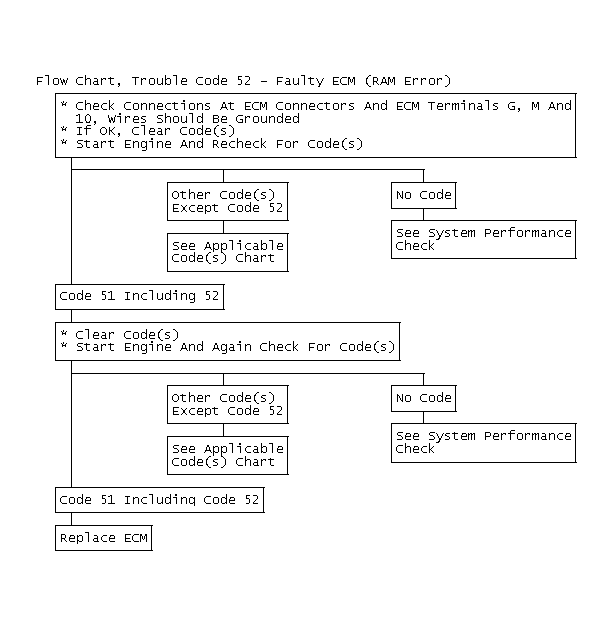

Fig 2: Flow Chart, Trouble Code 52 - Faulty ECM (RAM Error)
