Home >> Chevrolet >> 1983 >> S10 Blazer 1.9 A, RWD, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 1.9L CEC Tests W/Codes >> Code 31 - No Reference Signal To ECM

Code 31 - No Reference Signal To ECM

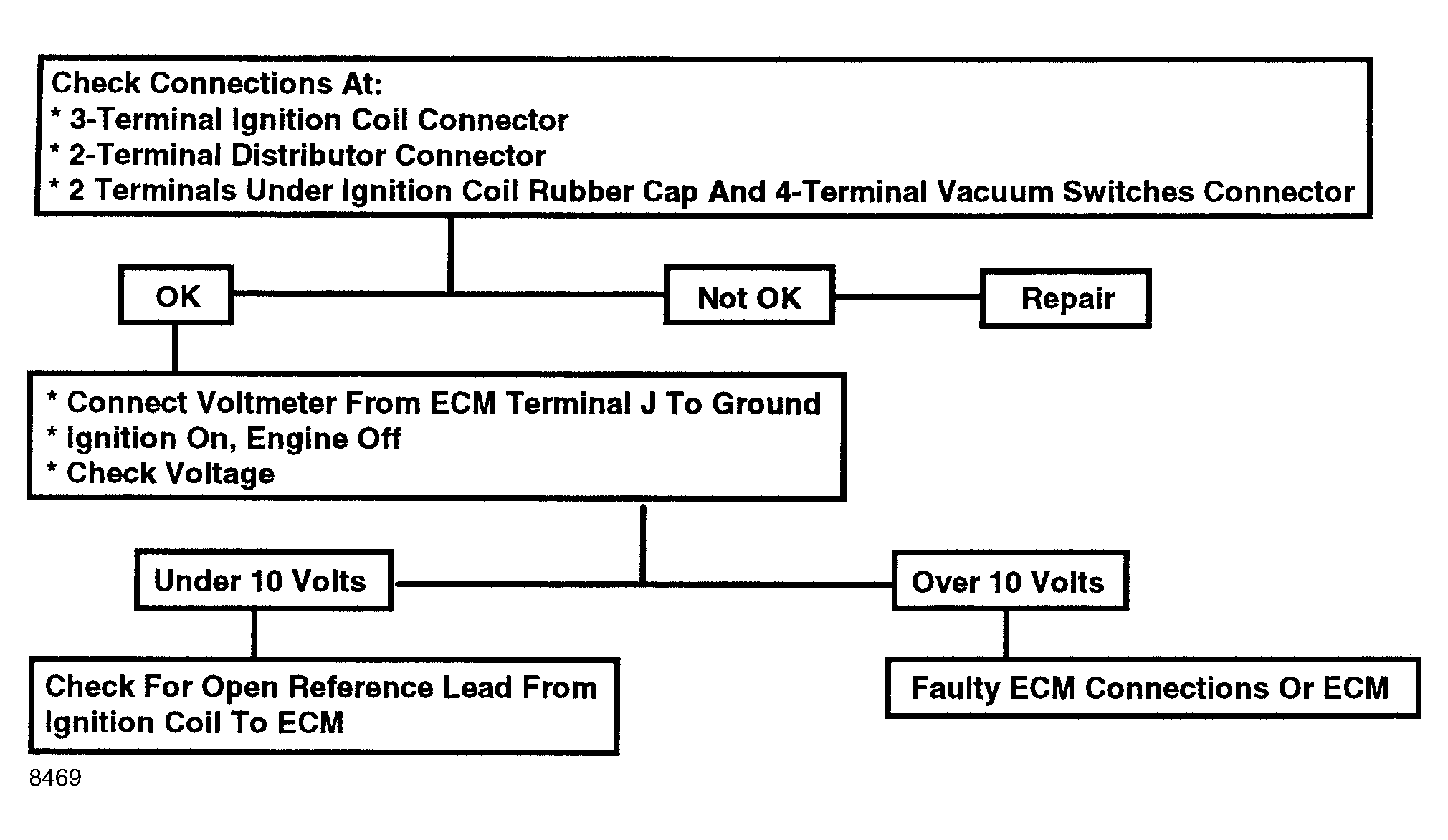

Fig 1: Flow Chart, Trouble Code 31 - No Ign Ref Sig To ECM (Stored In Memory)

G8469

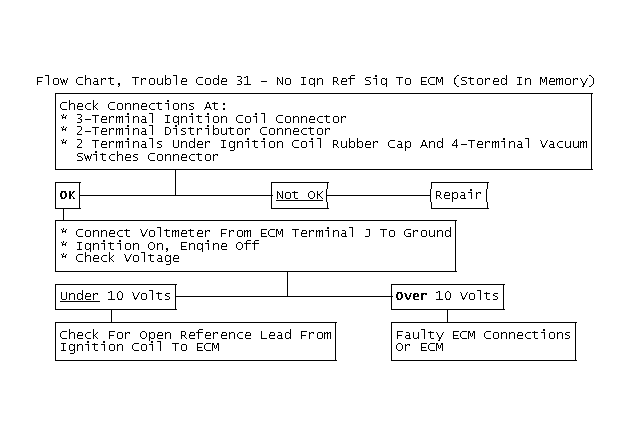

Fig 2: Flow Chart, Trouble Code 31 - No Ign Ref Sig To ECM (Stored In Memory)

GB0047683
