1.9L CEC Tests W/Codes
>>
Code 23 - Vacuum Control Solenoid
Code 23 - Vacuum Control Solenoid

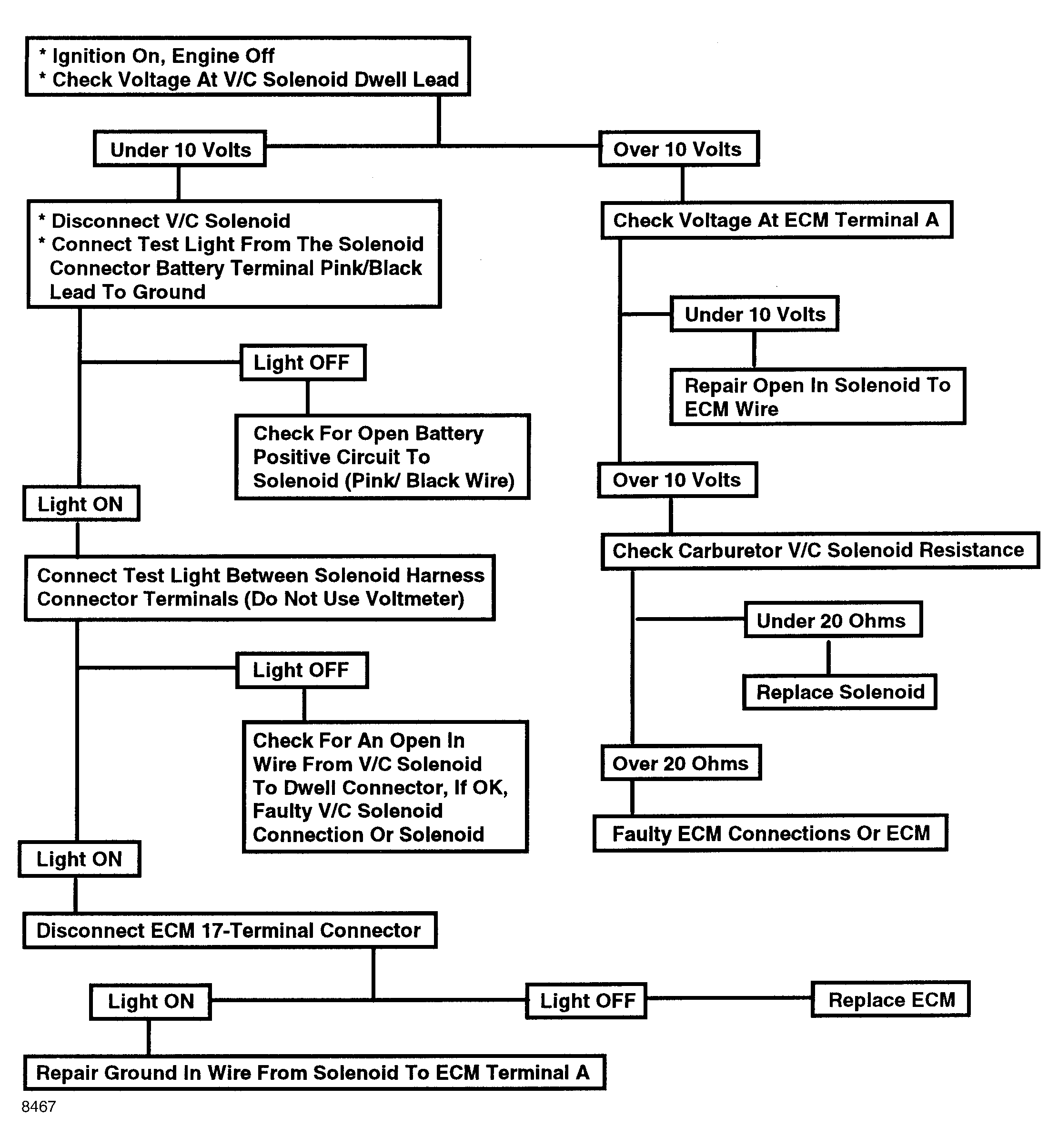

Fig 1: Flow Chart, Trouble Code 23 - Vac Control Sol Ckt Open Or Grnd

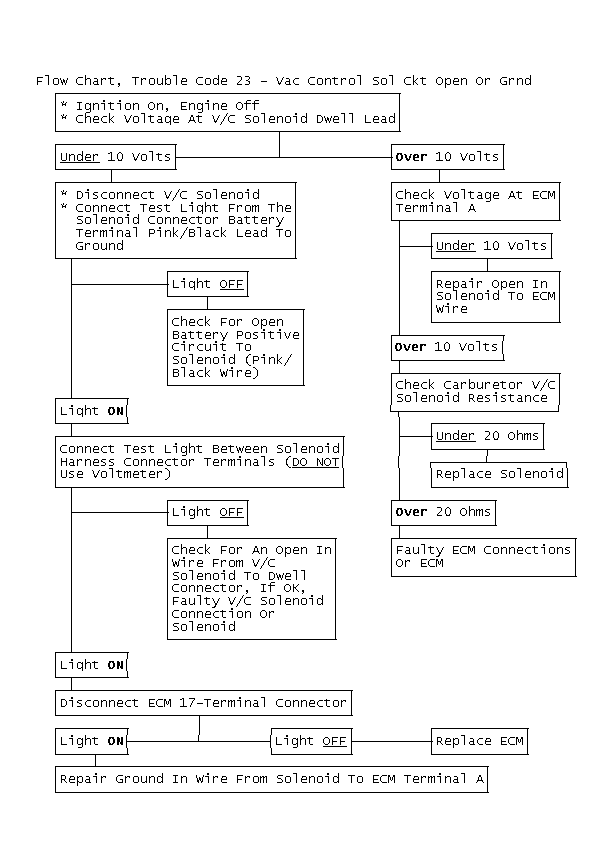

Fig 2: Flow Chart, Trouble Code 23 - Vac Control Sol Ckt Open Or Grnd
