Code 45: Rich Exhaust Indication

Fig 1: Code 45: Rich Exhaust Indication Flow Chart

G9321

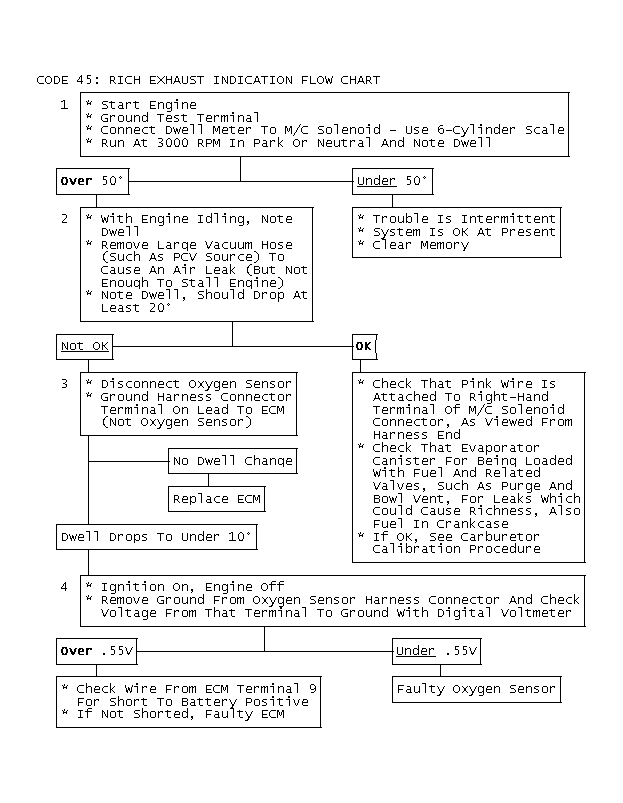

Fig 2: Code 45: Rich Exhaust Indication Flow Chart

GB0045635
