Code 21 - TPS Circuit

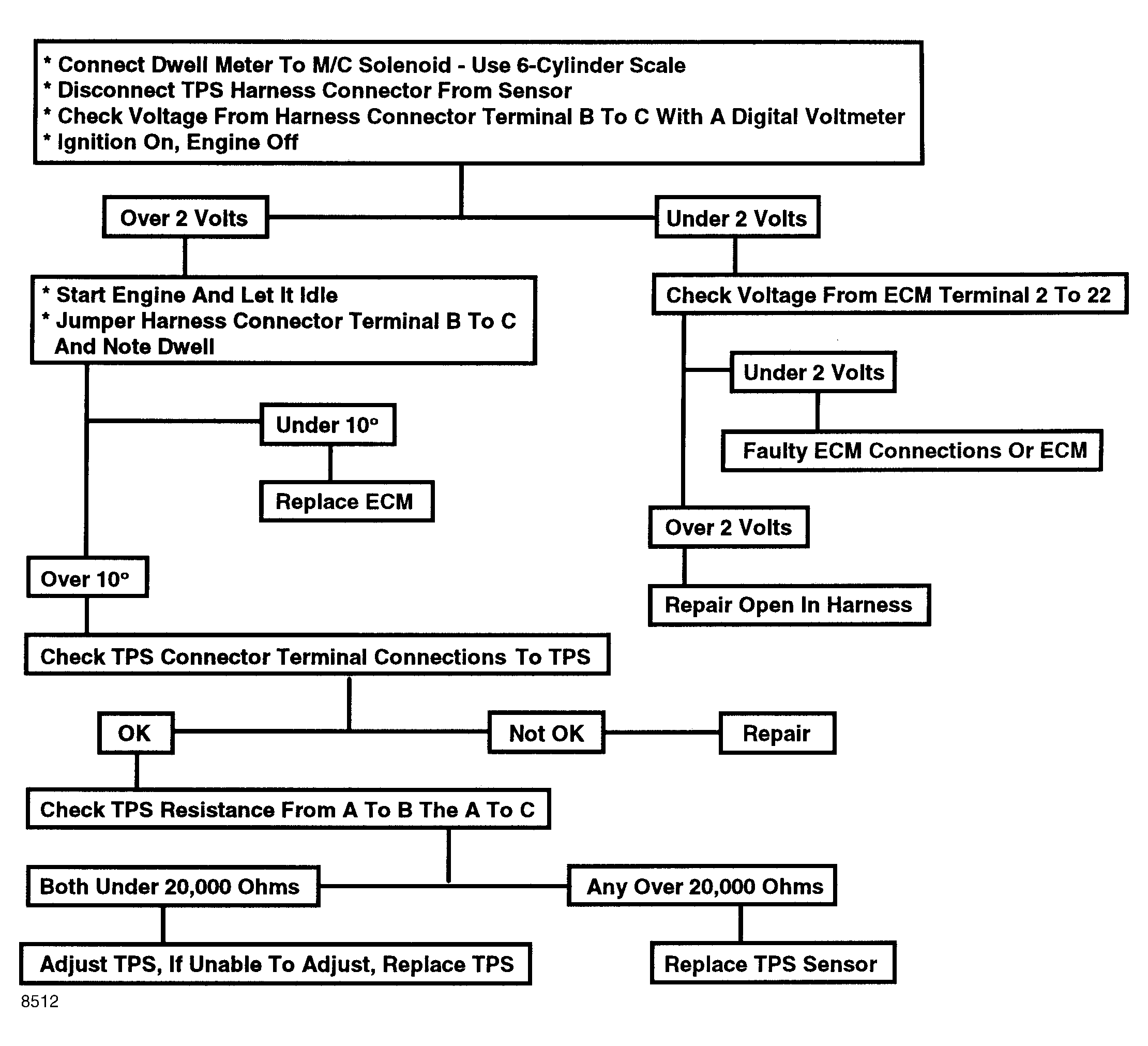

Fig 1: Flow Chart, Code 21 - Throttle Position Switch (TPS) Circuit

G8512

Fig 2: Flow Chart, Code 21 - Throttle Position Switch (TPS) Circuit

GB0048239
