Chevette Scooter, 2D Hatchback, Standard, MY1
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
Chart 4 - No "Check Engine" Light
Chart 4 - No "Check Engine" Light

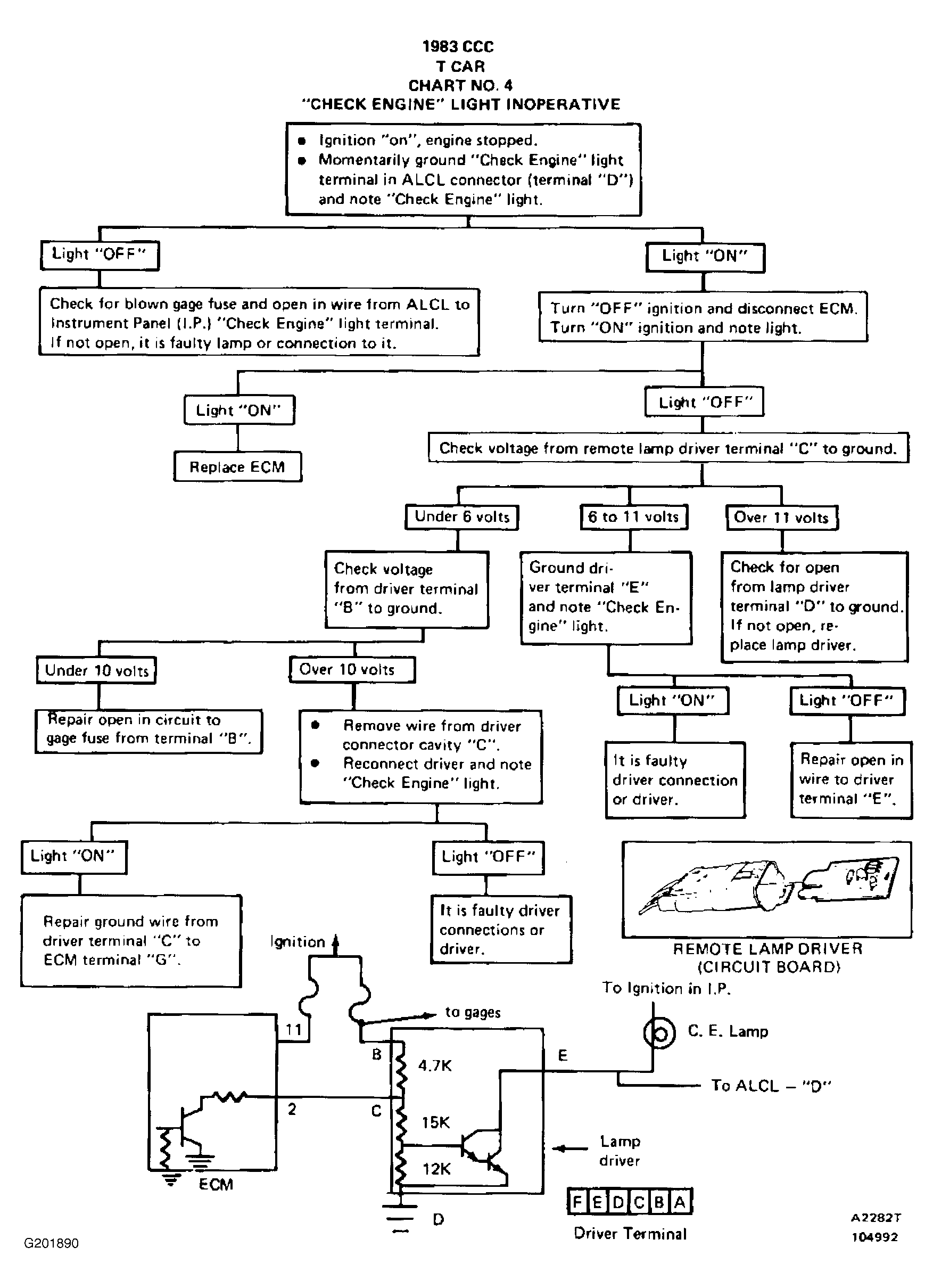

Fig 1: Chart 4 - "CHECK ENGINE" Light Inoperative
