Home >> Chevrolet >> 1983 >> Chevette Base, 2D Hatchback, 1.8 D, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Tests W/Codes >> Code 21 - Throttle Position Sensor (TPS) Sensor CKT

Code 21 - Throttle Position Sensor (TPS) Sensor CKT

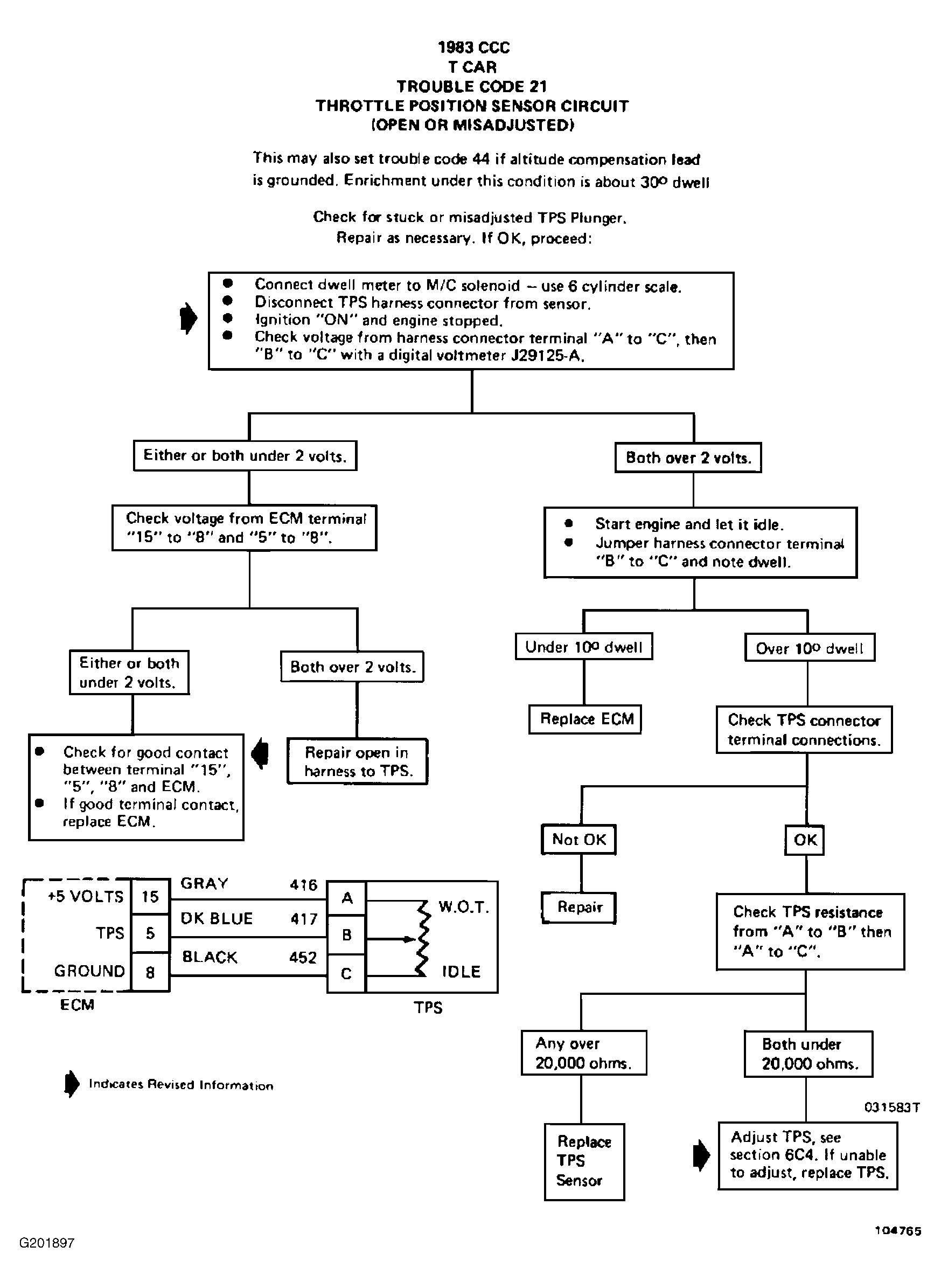

Fig 1: Flow Chart, Code 21 - Throttle Position Sensor (TPS) Ckt - (Open or Misadjusted)
G201897
Fig 2: Flow Chart, Code 21 - Throttle Position Sensor (TPS) Ckt - (Open or Misadjusted)
GB0045536
