Air Management Check

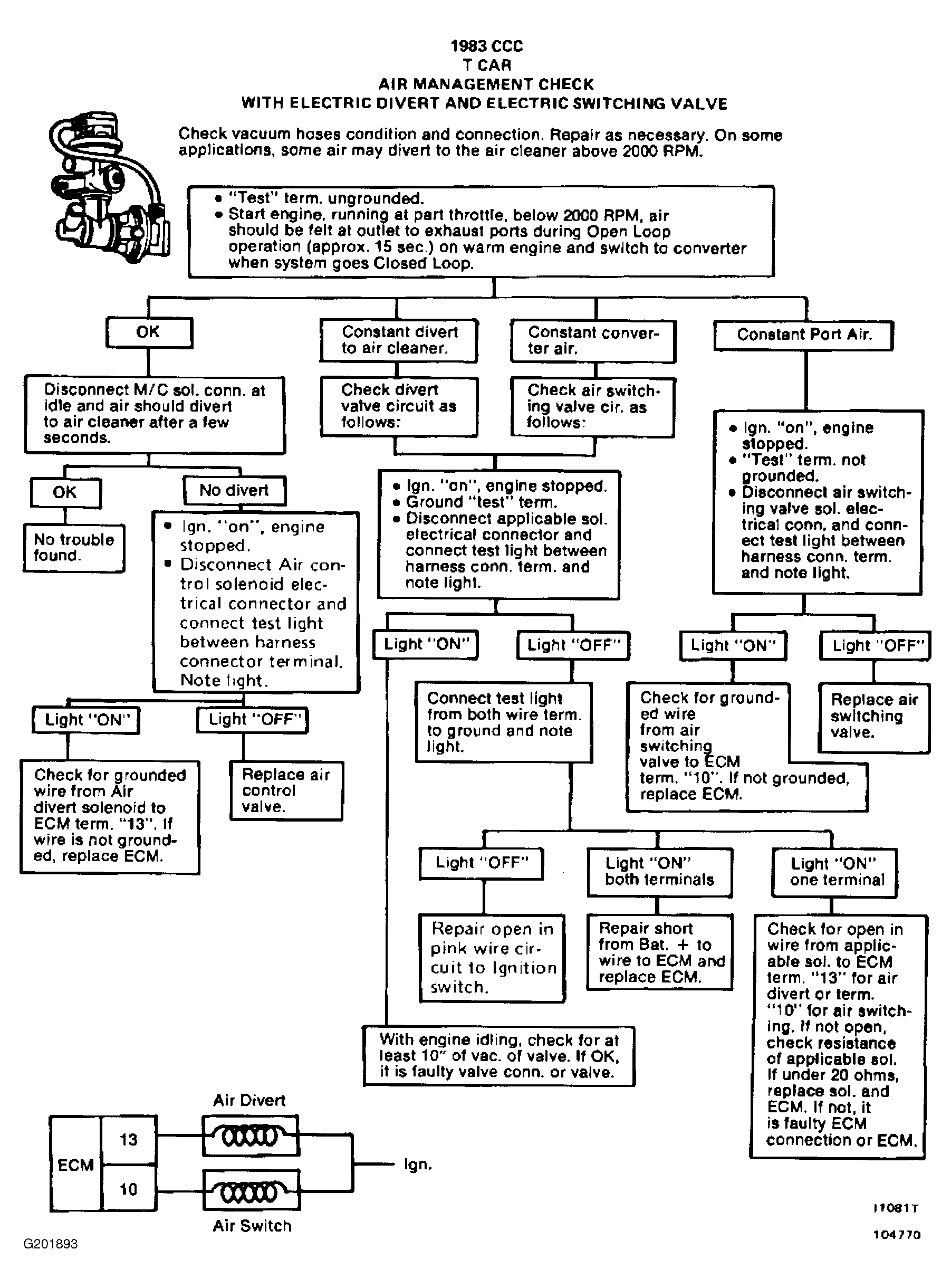

Fig 1: Air Management Check - With Electric Divert And Electric Switching Valve

G201893
