EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 55-2, Date of Issue: 06/16/83

CODES 44/22 CHARTS 3,8,8H,11 - REVISION DIAGNOSTIC CHART

Model(s): ALL MODELS

Bulletin No.: Chevrolet 55-2, Pontiac 83-I-35, Buick 83-56

Date: 06/16/1983

SERVICE INFORMATION

INCLUDED WITH THIS BULLETIN ARE SOME UPDATED EFI DIAGNOSTIC CHARTS. THESE CHARTS CAN BE KEPT IN YOUR 1983 SERVICE MANUAL UNTIL COMPLETE PAGES ARE ISSUED IN A SERVICE MANUAL REVISION.

LISTED BELOW ARE THE REVISED CHARTS AND 1983 SERVICE MANUAL PAGE NUMBERS: (PLEASE REFER TO PAPER BULLETIN FOR CHARTS).

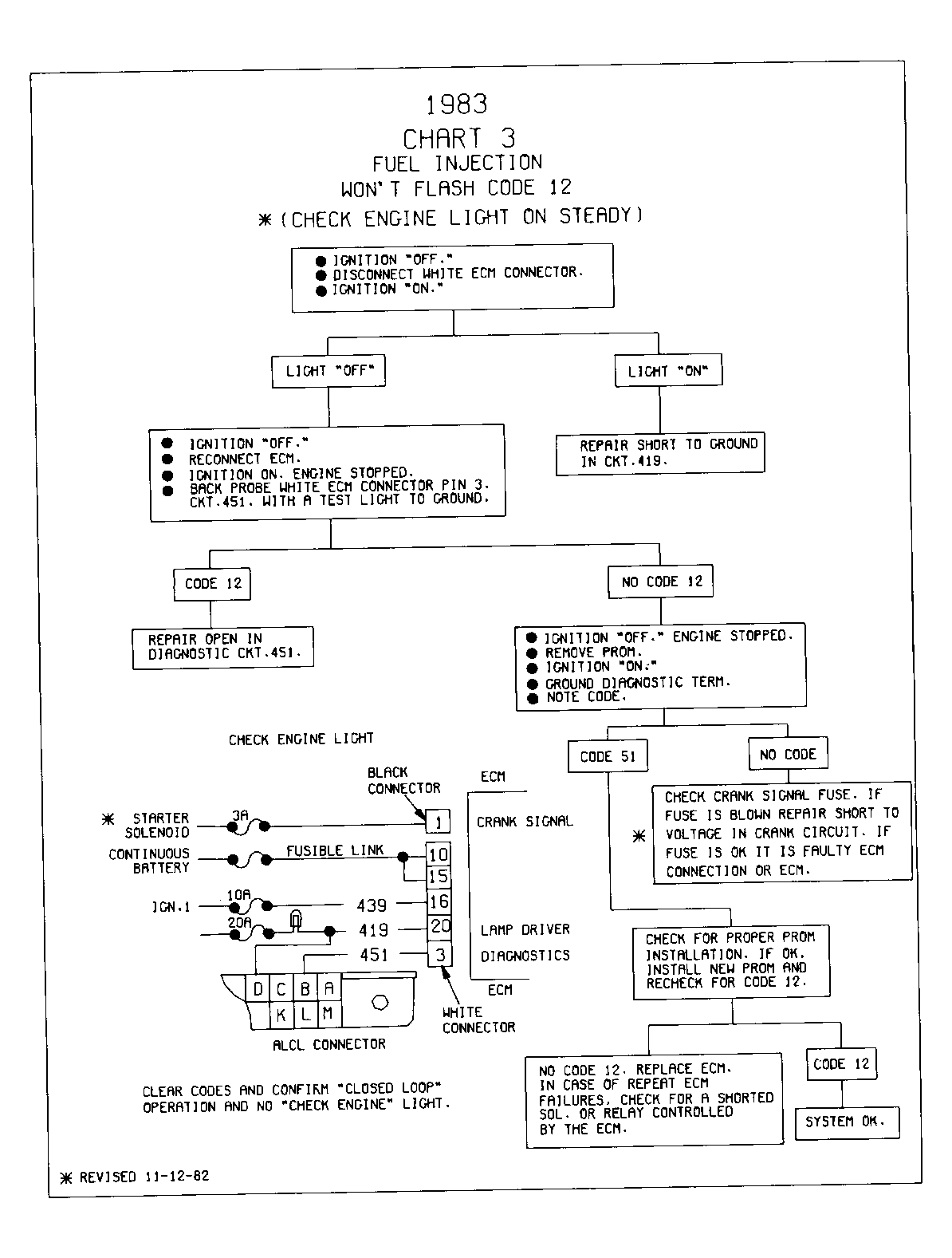

CHART 3 PAGE 6E2-27

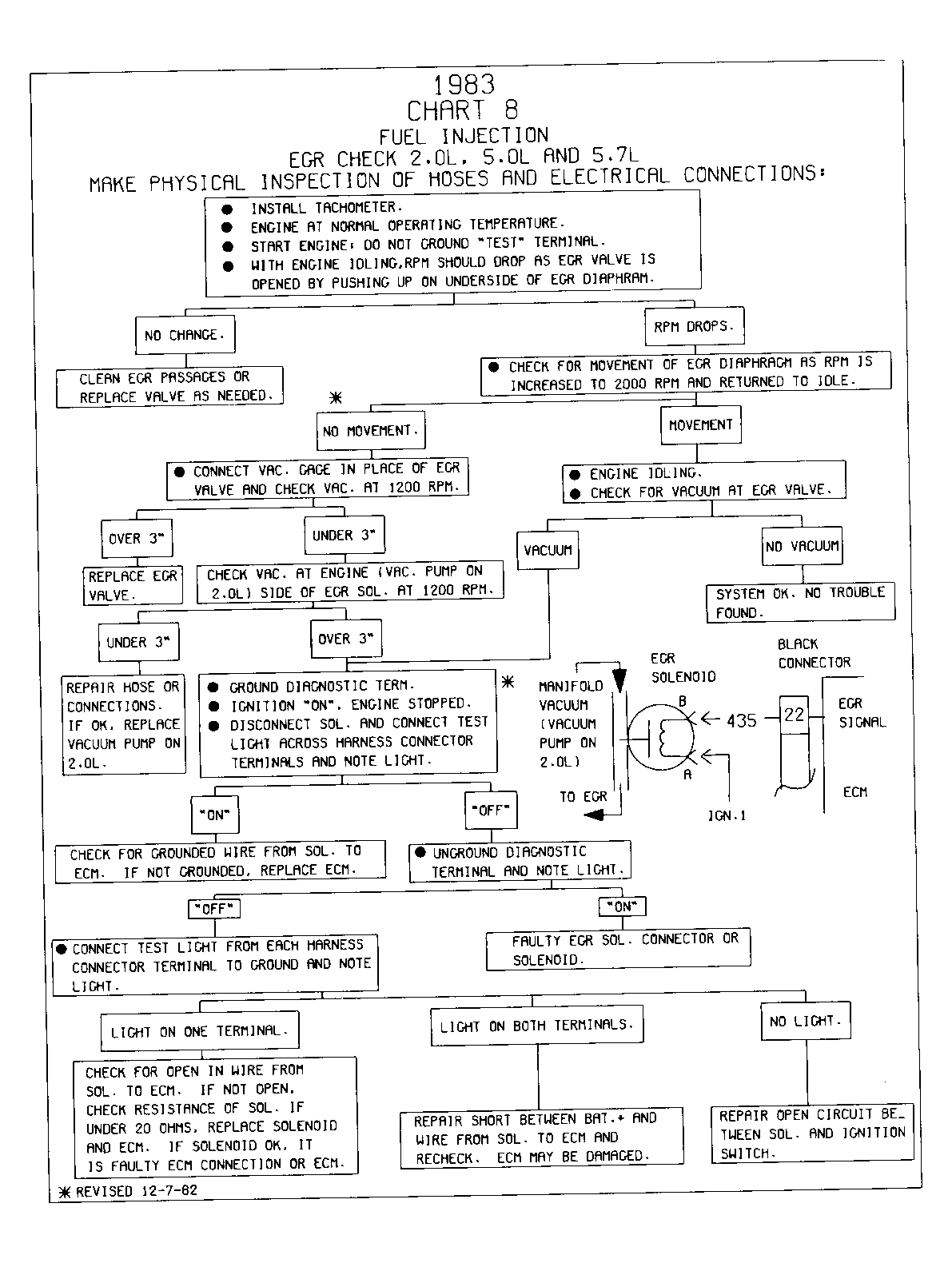

CHART 8 PAGE 6E2-35

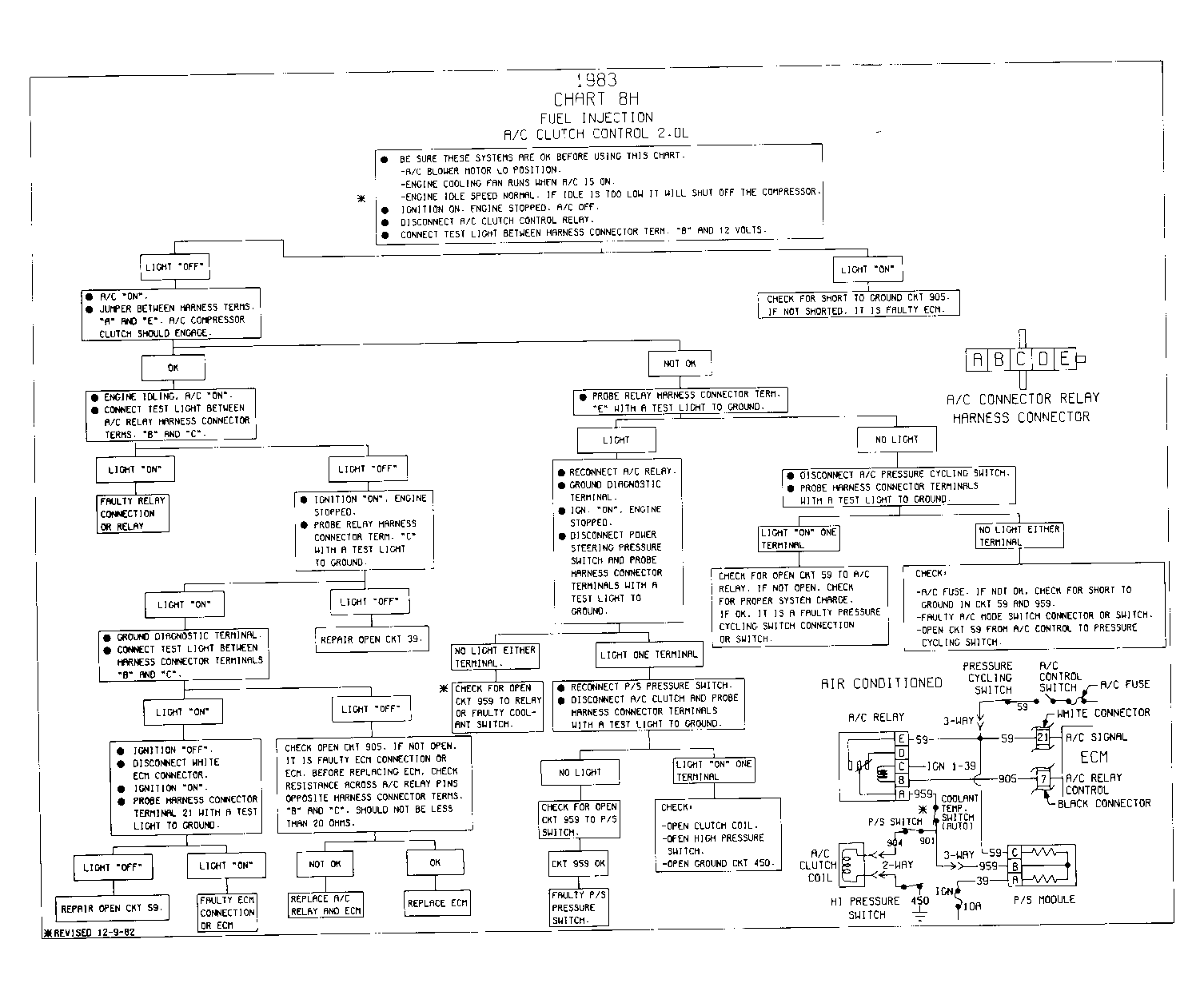

CHART 8H PAGE 6E2-44

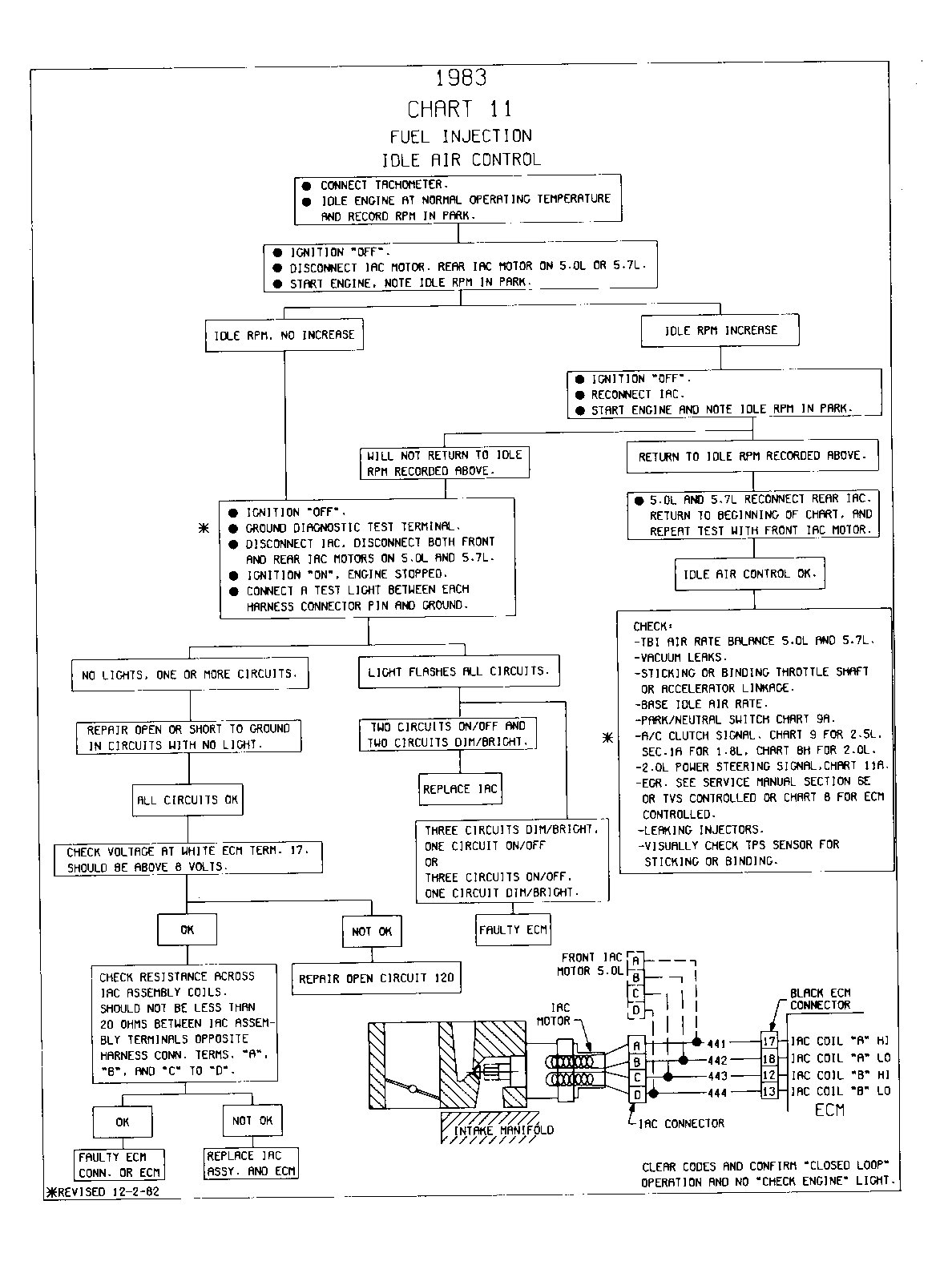

CHART 11 PAGE 6E2-44

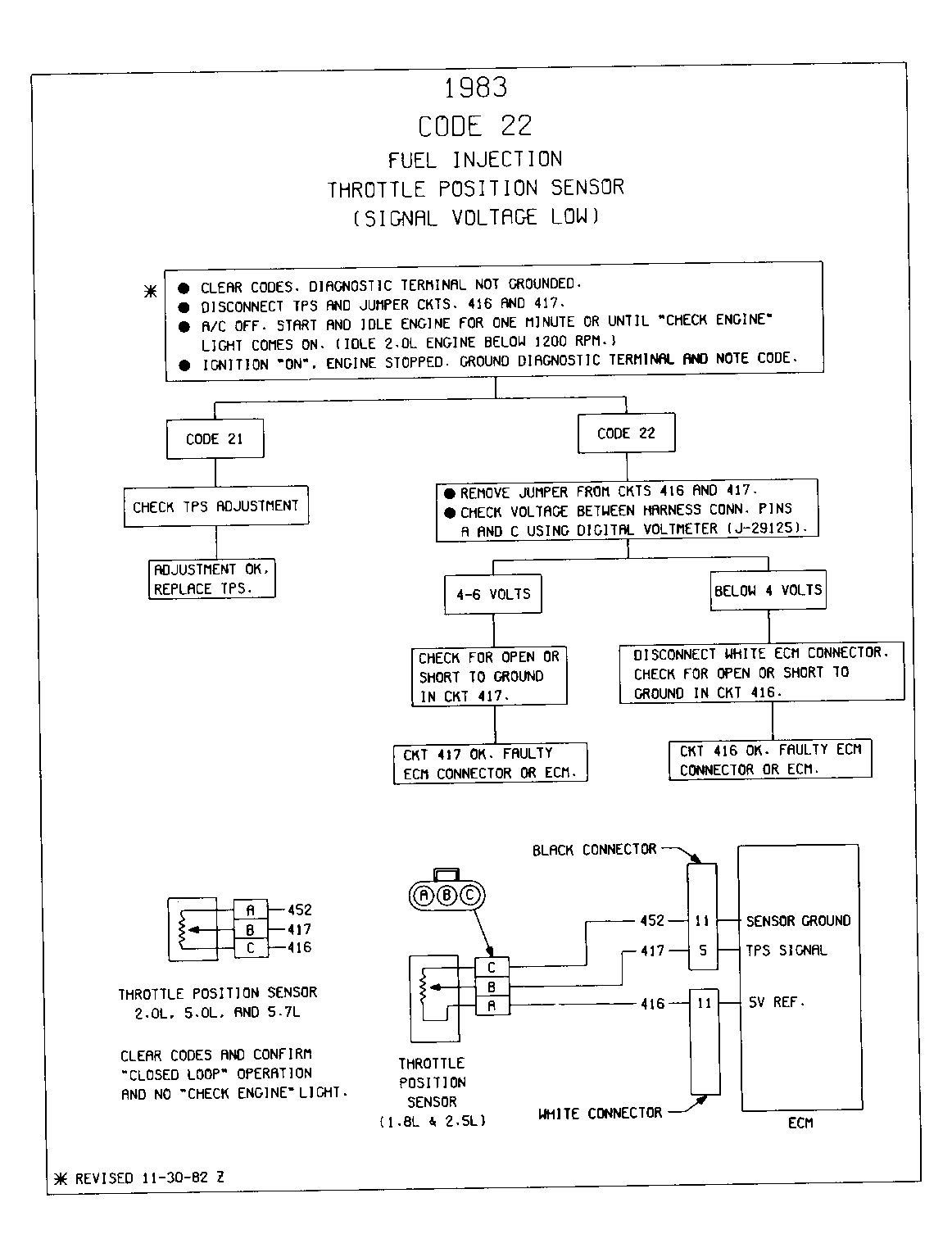

CHART 22 PAGE 6E2-49

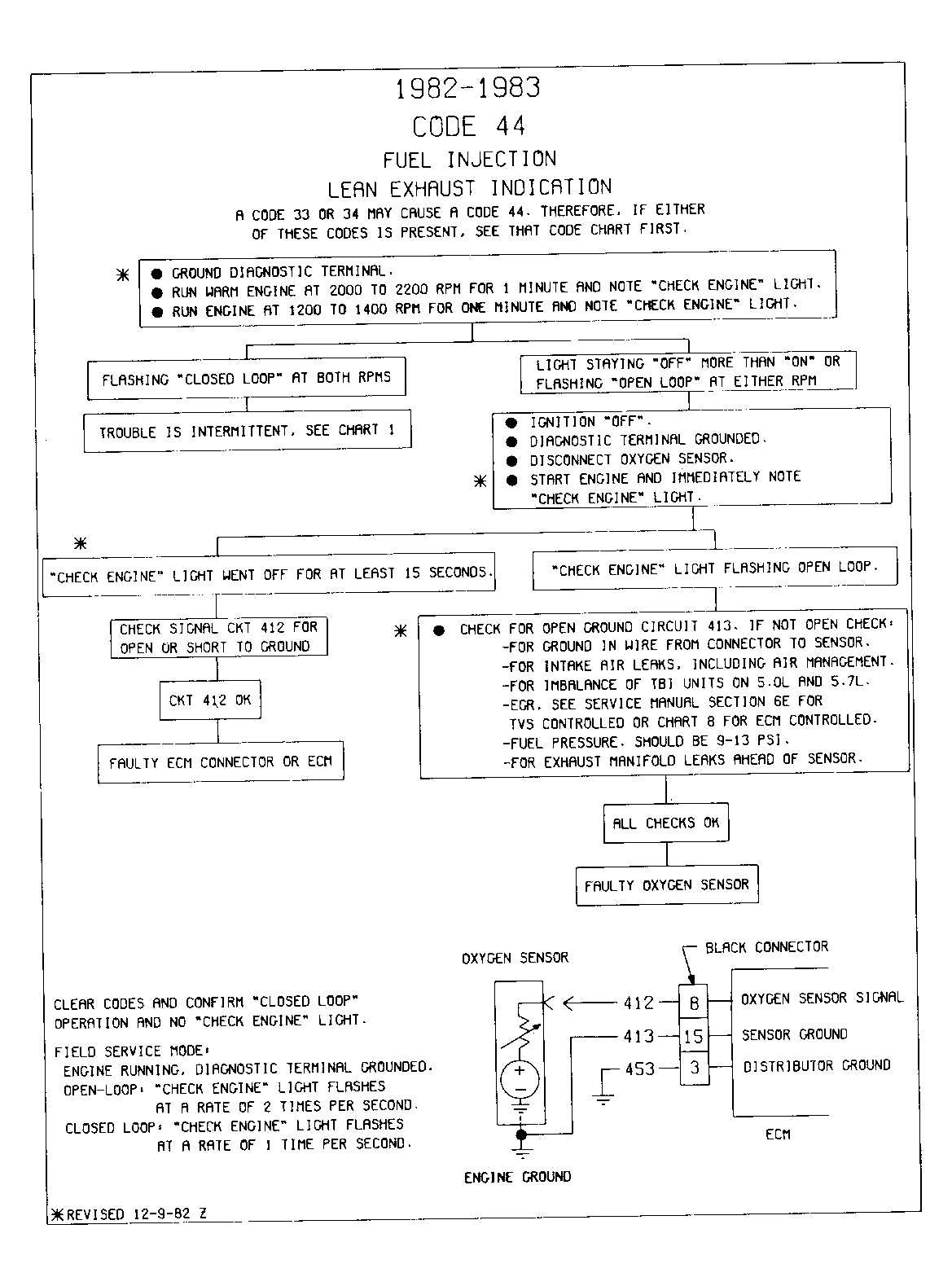

CHART 44 PAGE 6E2-55

BULLETIN ILLUSTRATION LIST

Fig 1: Graphic

Fig 2: Graphic

Fig 3: Graphic

Fig 4: Graphic

Fig 5: Graphic

Fig 6: Graphic
