Fuel Injection System - Dual Unit TBI
>>
Testing
>>
Fuel System Diagnosis
Fuel System Diagnosis

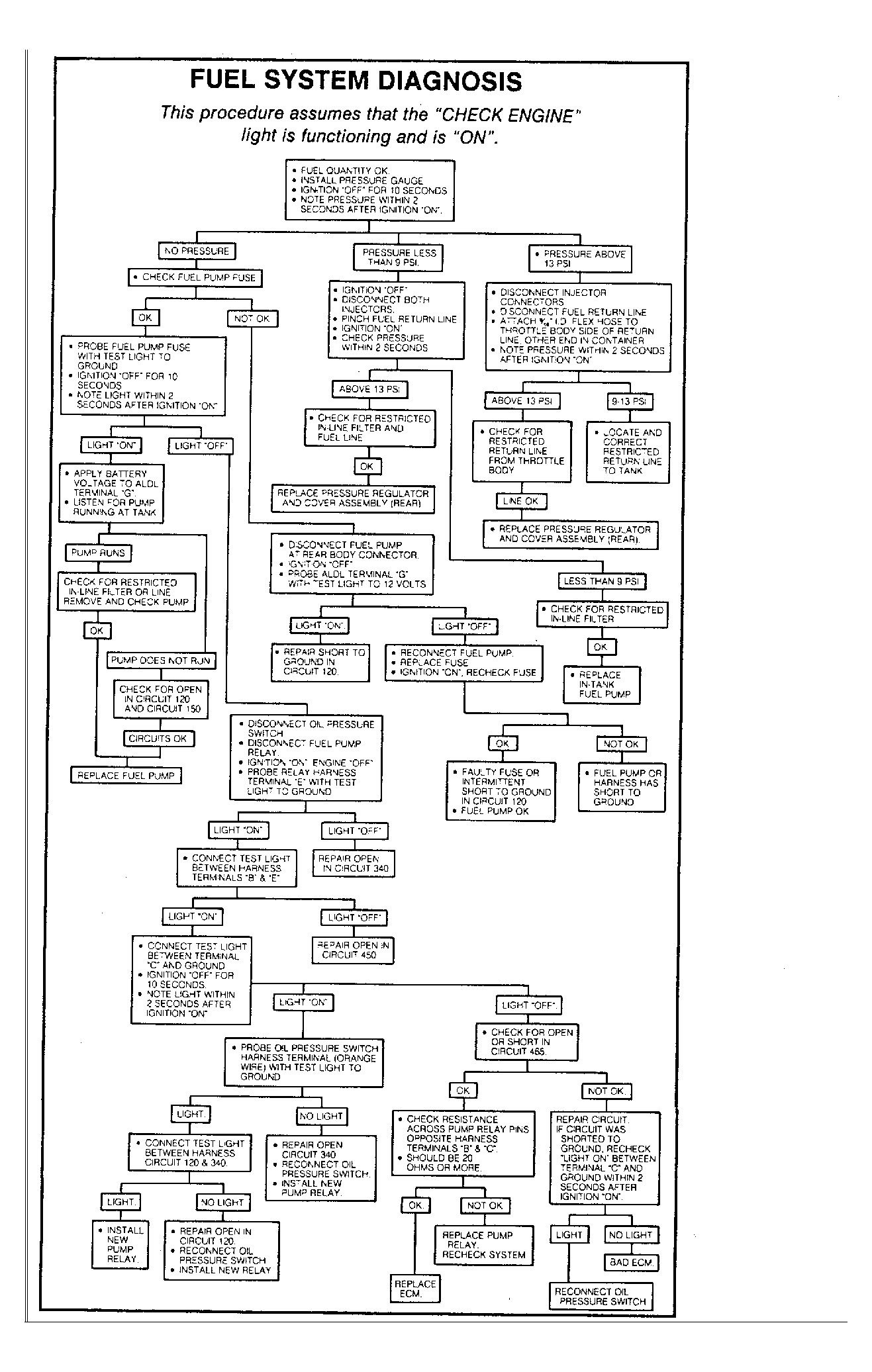

Fig 1: Fuel System Diagnosis
This procedure assumes that the "CHECK ENGINE" light is functioning and is "ON".
