EXPERTEC TECHNICAL SERVICE BULLETINS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 55-4, Date of Issue: January 27, 1983

Model(s)::

1983 Chevrolet Camaro

SERVICE INFORMATION

Please refer to bulletin number 83-I-85 for nine 1982-83 updated EFI Diagnostic Charts. The affected charts are as follows:

1982-83 Chart - "Diagnostic Circuit Check"

1982-83 Chart - "Field Service Mode Check"

1982-83 Chart 4

1983 Chart 4A

1983 Chart 8

1983 Chart 11

1983-.5 Chart 11B (One-board ECM)

1982-83 Chart - "Code 24"

The revised 1983 Charts should be inserted into your General Carline Information Manual until permanent page revisions are printed. The 1982 Chart revisions should be taped over the existing charts in your 1982 Service Manuals.

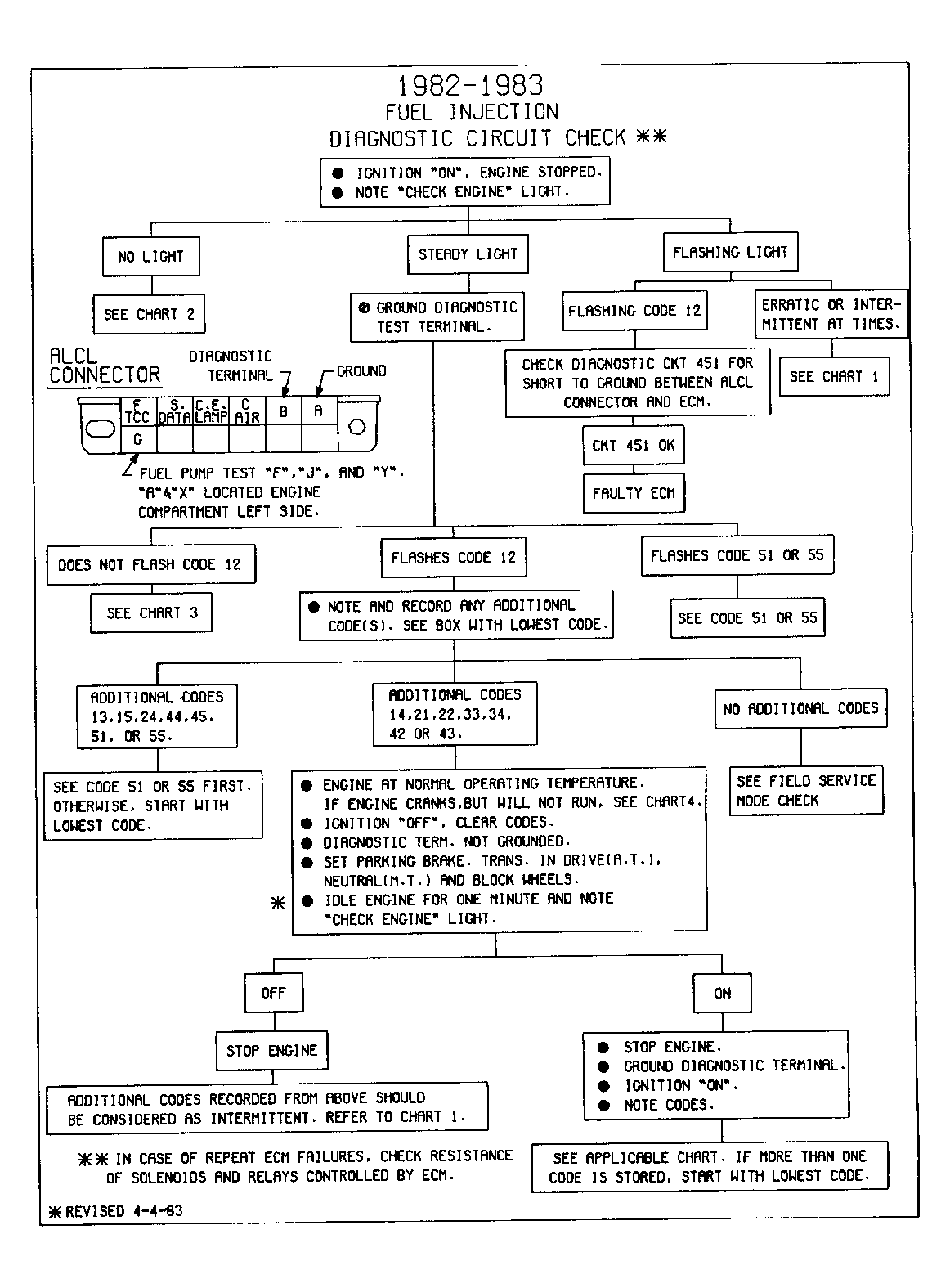

Fig 1: 1982-83 Chart - Diagnostic Circuit Check

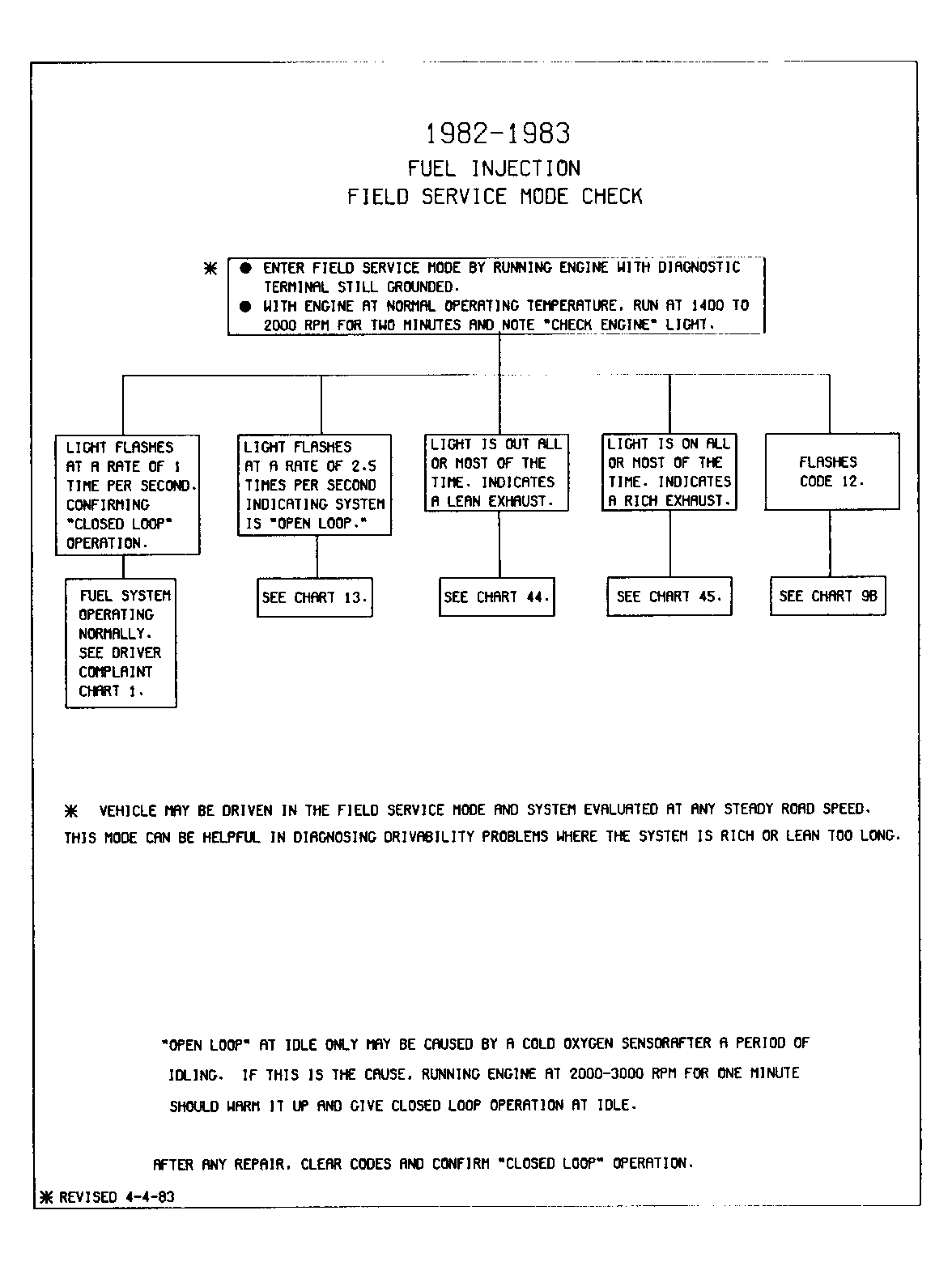

Fig 2: 1982-83 Chart - Field Service Mode Check

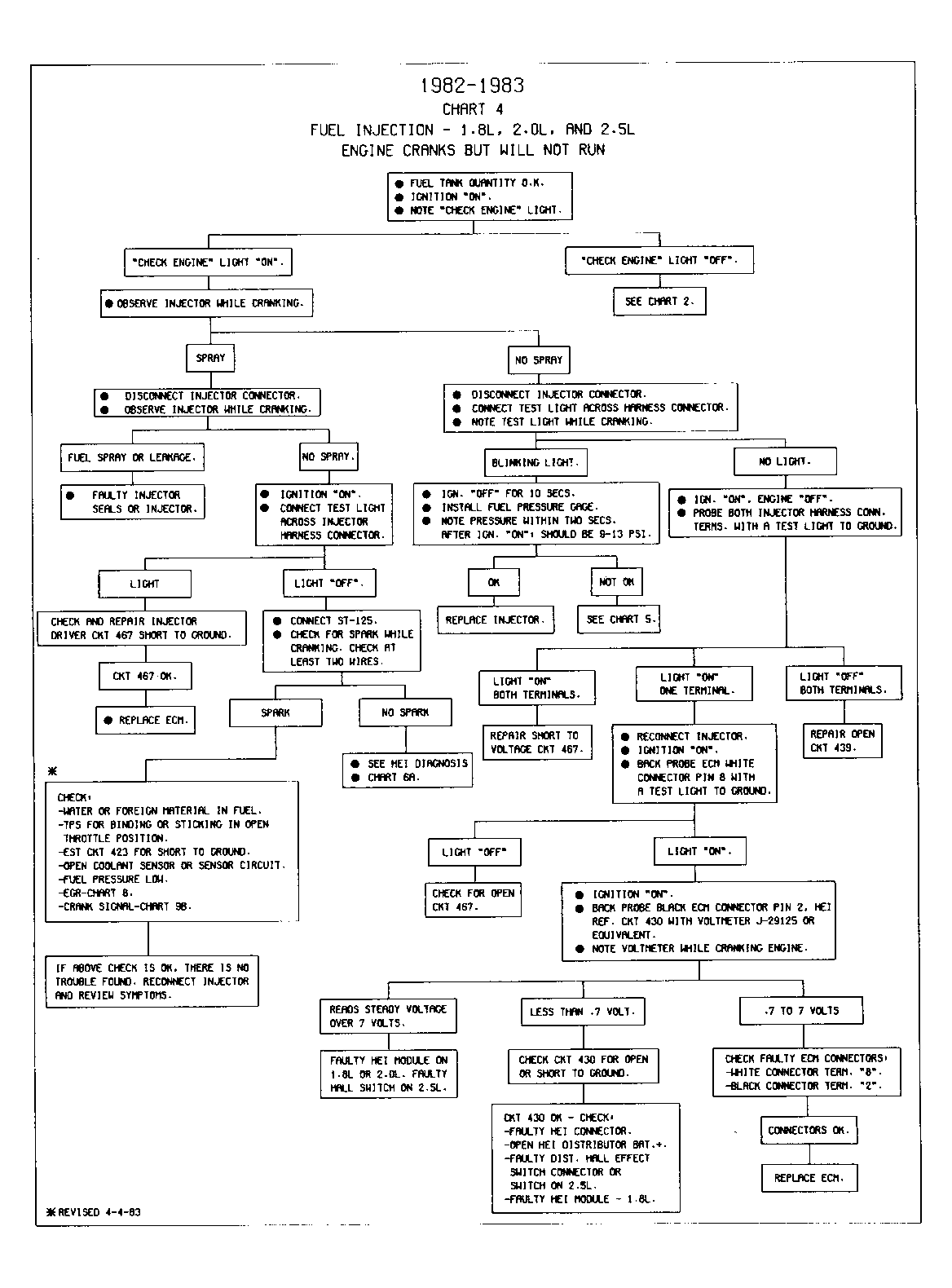

Fig 3: 1982-83 Chart 4

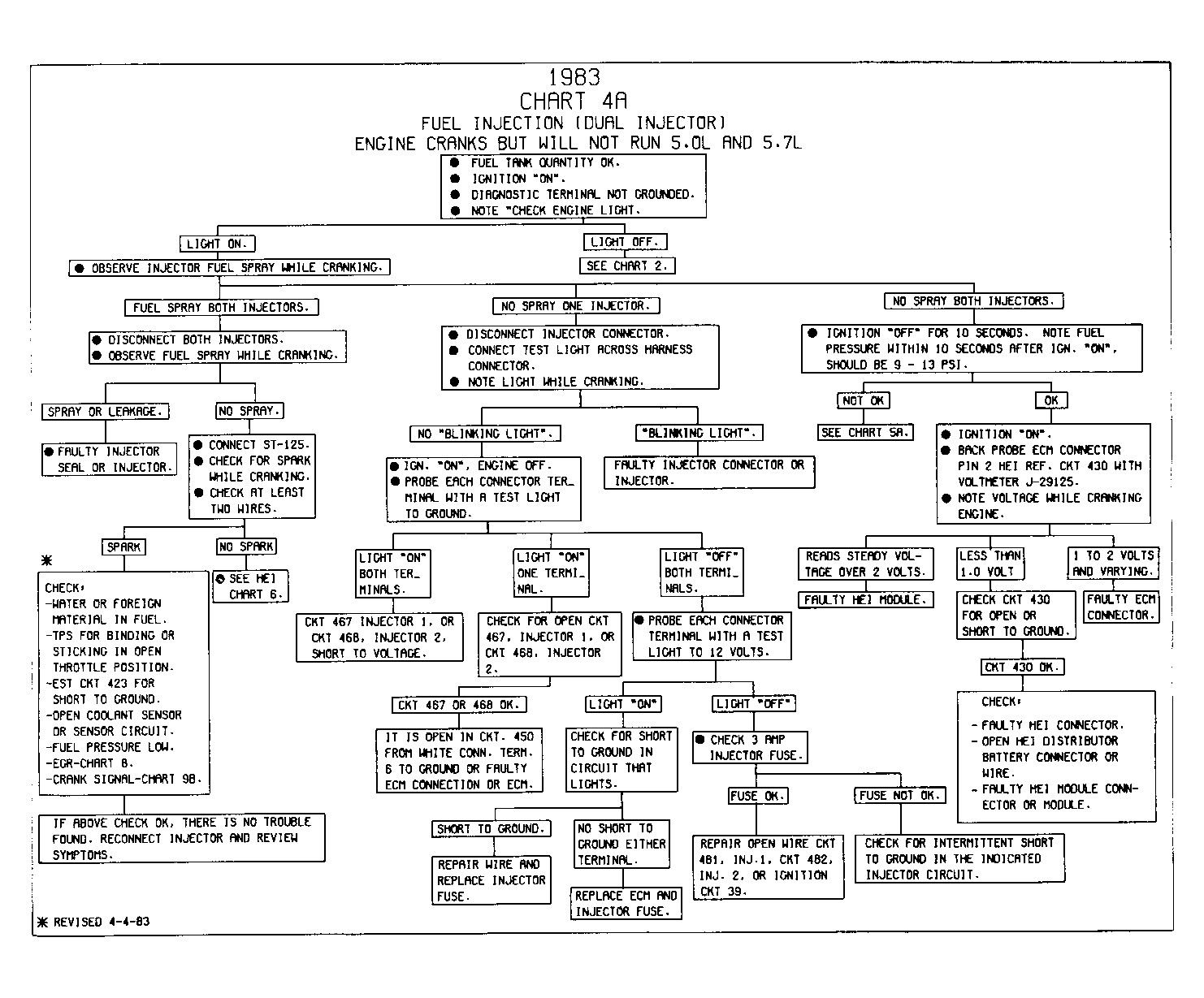

Fig 4: 1983 Chart 4A

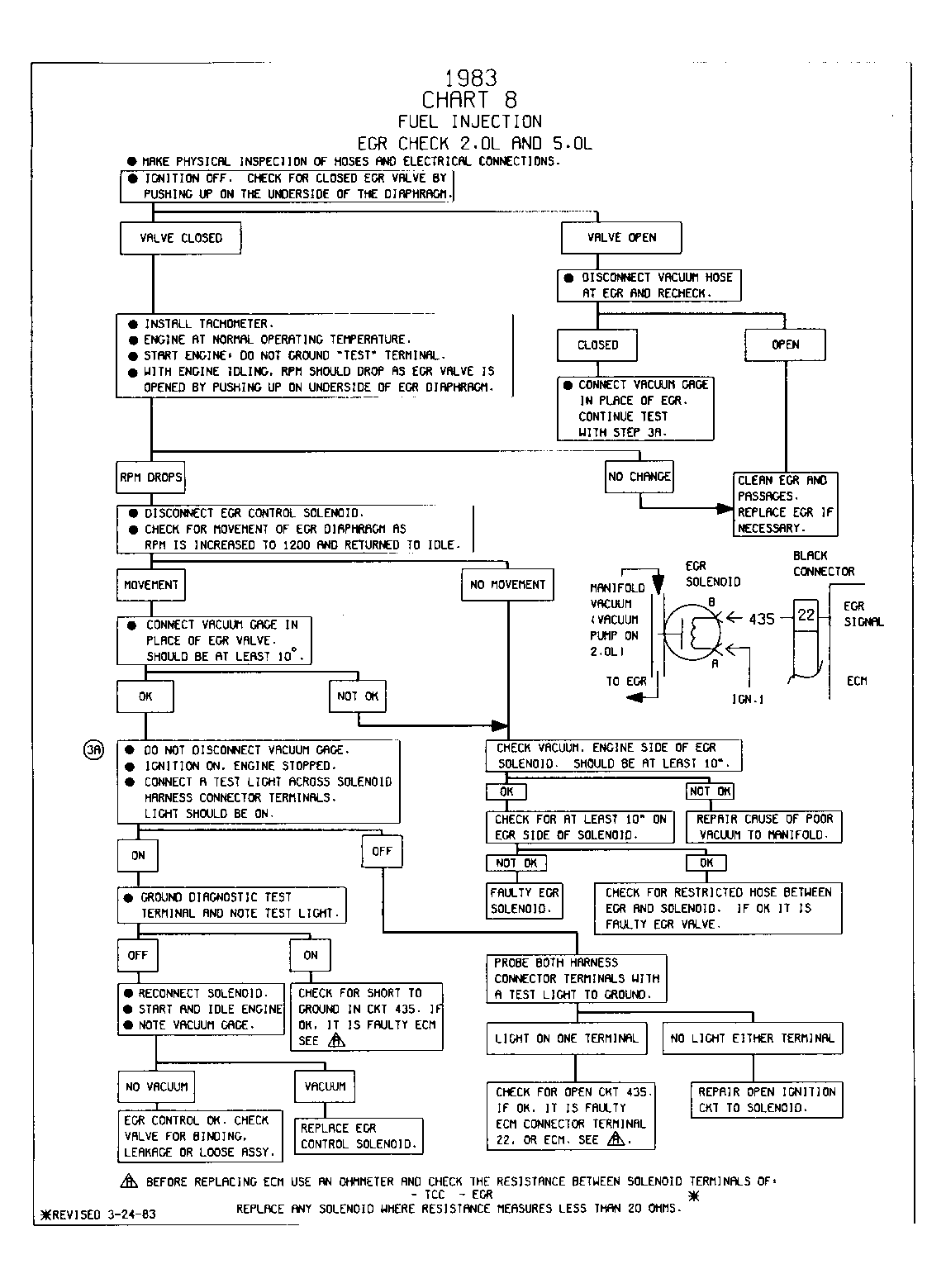

Fig 5: 1983 Chart 8

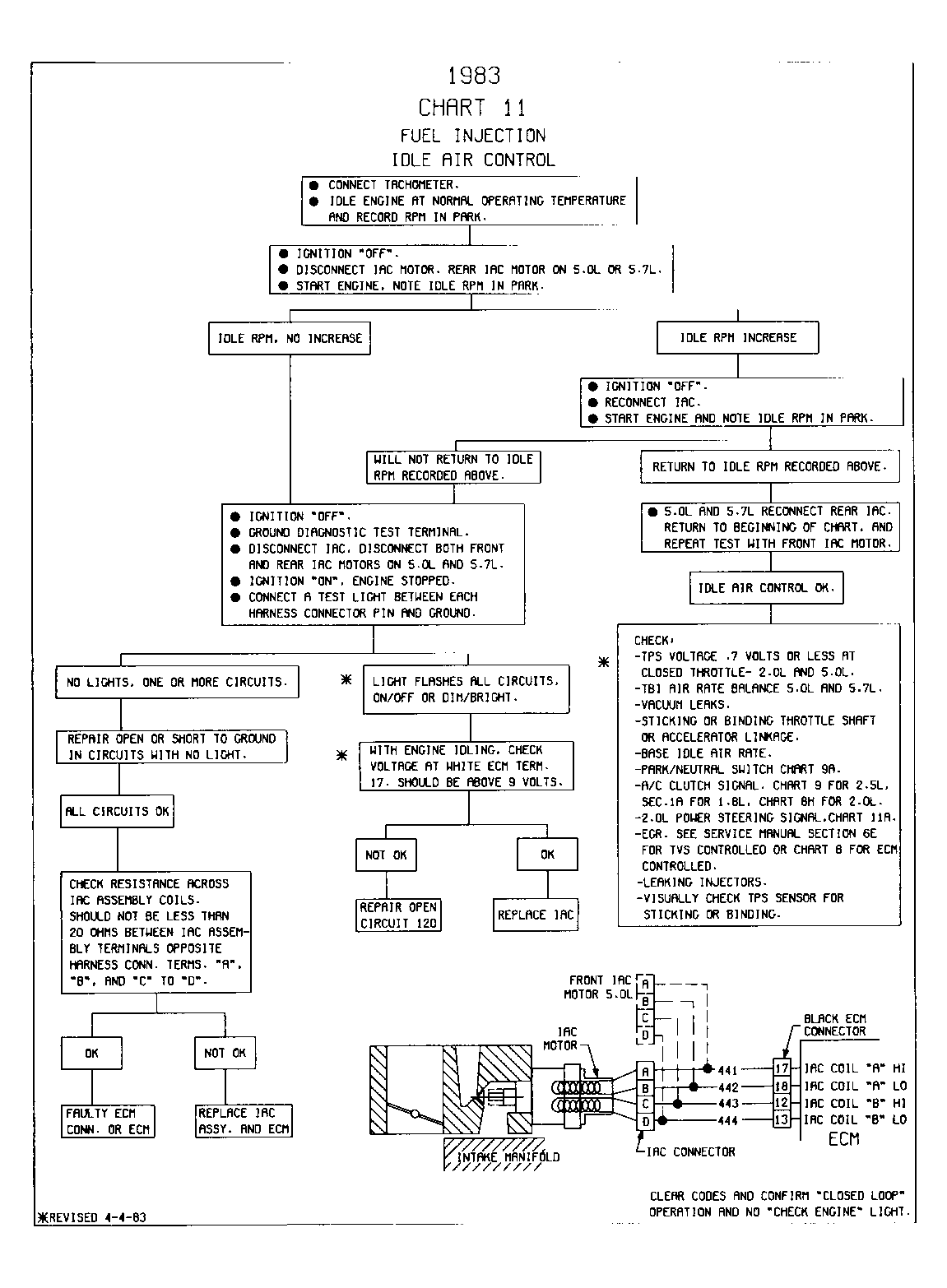

Fig 6: 1983 Chart 11 - (1 of 2)

Fig 7: 1983 Chart 11 - (2 of 2)

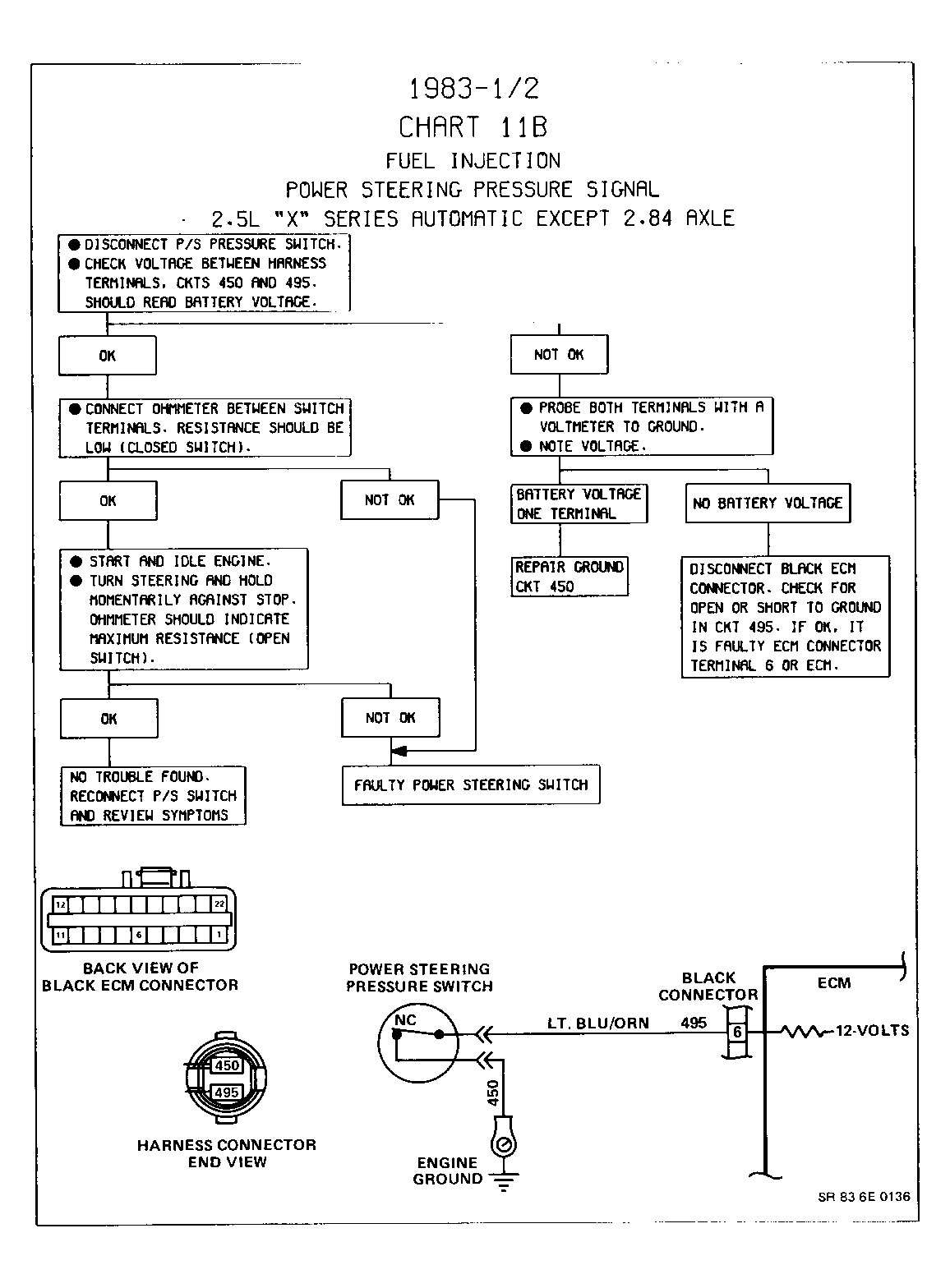

Fig 8: 1983-.5 Chart 11B (One-board ECM)

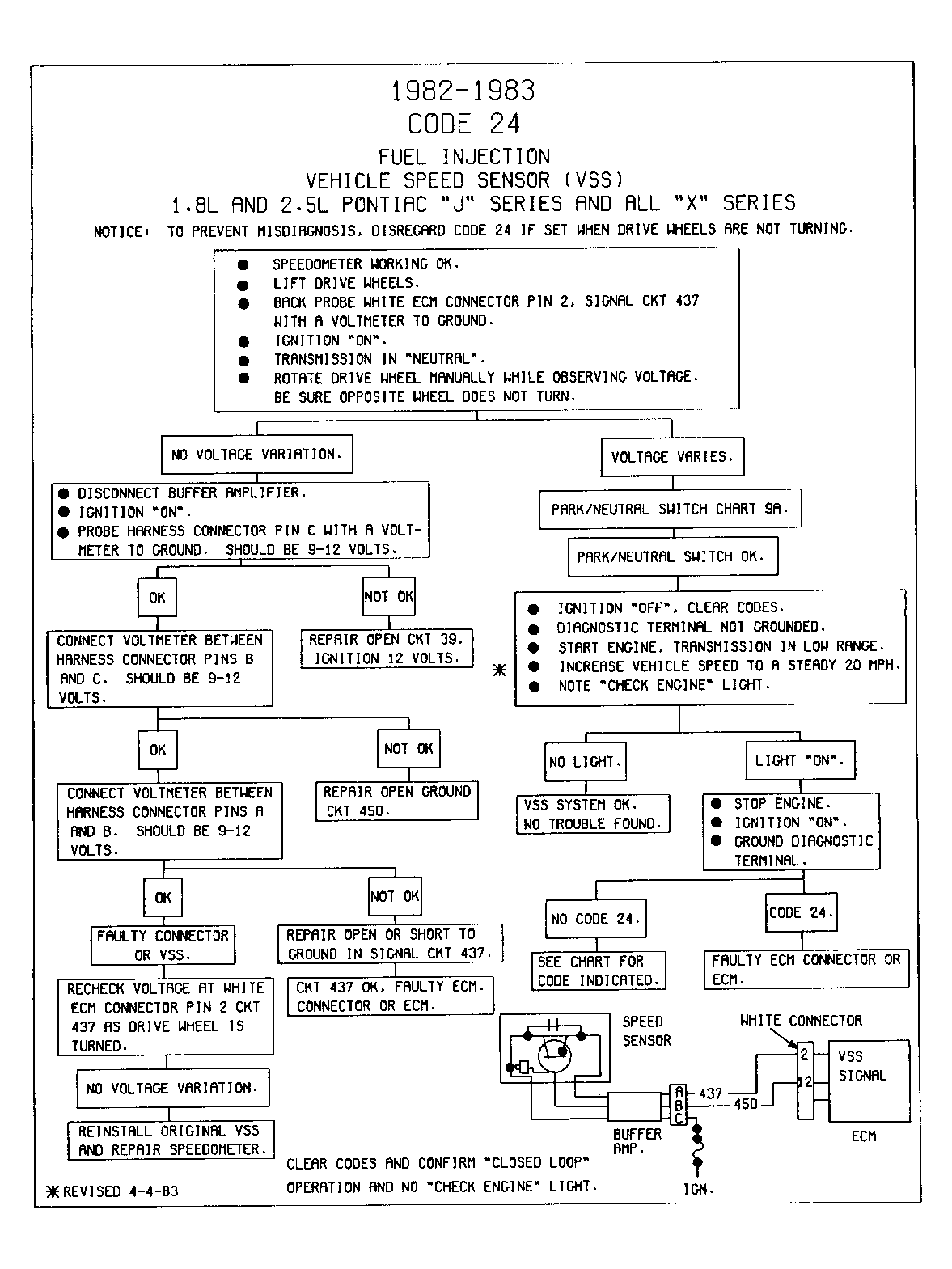

Fig 9: 1982-83 Chart - Code 24
