Feedback Carburetor Tests W/Codes
>>
Diagnostic Circuit Check
Diagnostic Circuit Check
Fig 1: Flow Chart - Diagnostic Circuit Check Chart

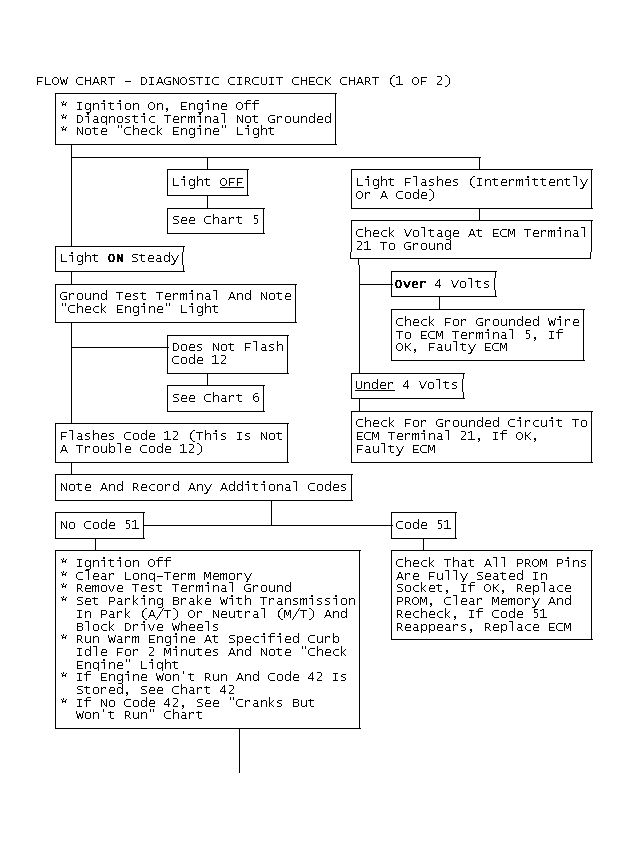

Fig 2: Flow Chart - Diagnostic Circuit Check Chart (1 OF 2)
Fig 3: Flow Chart - Diagnostic Circuit Check Chart (2 OF 2)
