Feedback Carburetor Tests W/Codes
>>
Chart 6: Won't Flash Code 12
Chart 6: Won't Flash Code 12
REMOTE LAMP DRIVER IN HARNESS
NOTE:
Check fuses that supply power to ECM. Repeat Diagnostic Circuit Check after any repair.

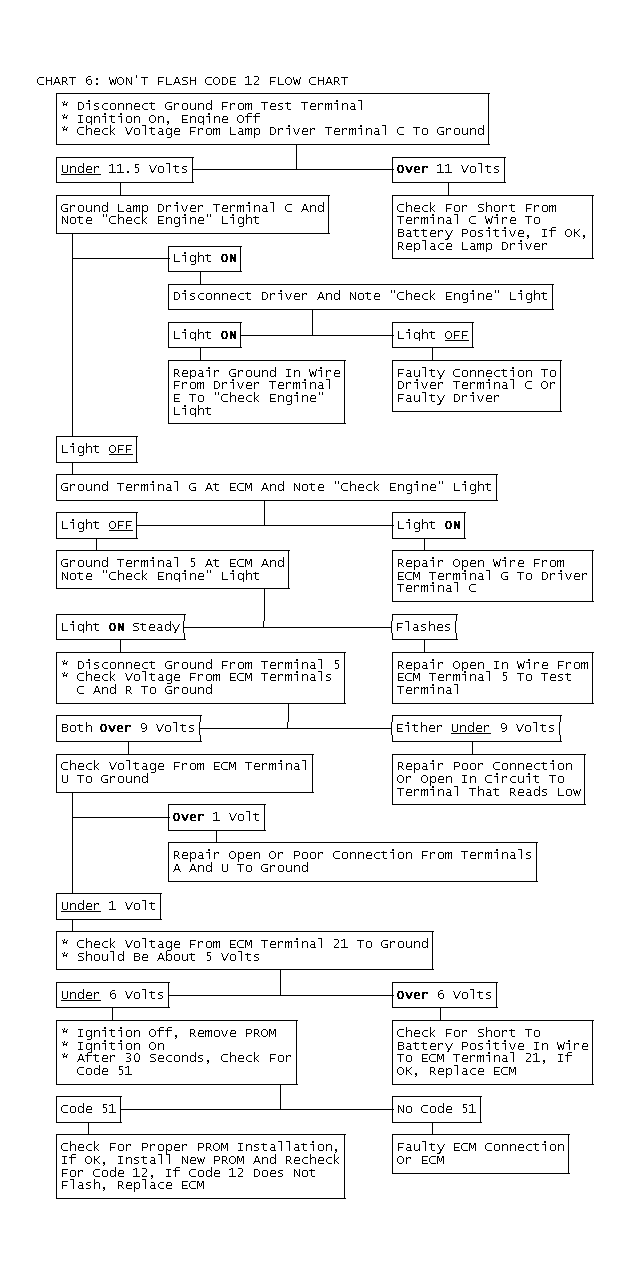

Fig 1: Chart 6: Won't Flash Code 12 Flow Chart
Fig 2: Chart 6: Won't Flash Code 12 Flow Chart
