Electrical Component Locator: Relays
RELAYS LOCATION
| Component | Location |
|---|---|

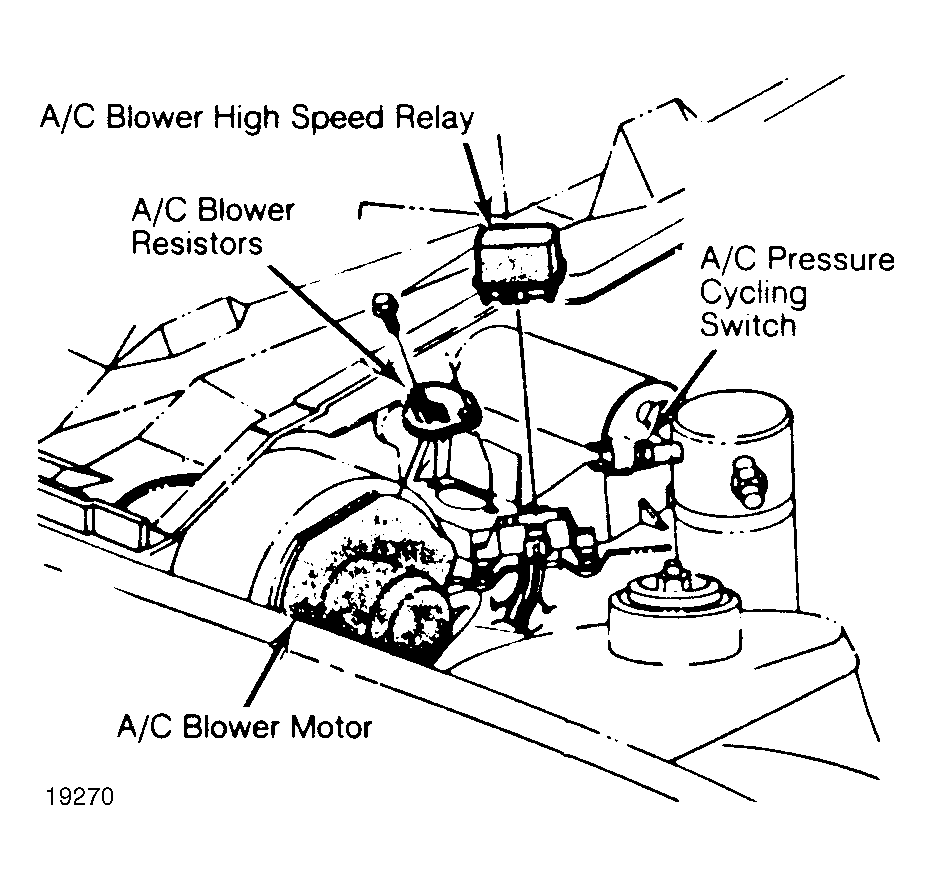

| A/C Blower High Speed Relay | Near blower motor on A/C module. See Figure. |

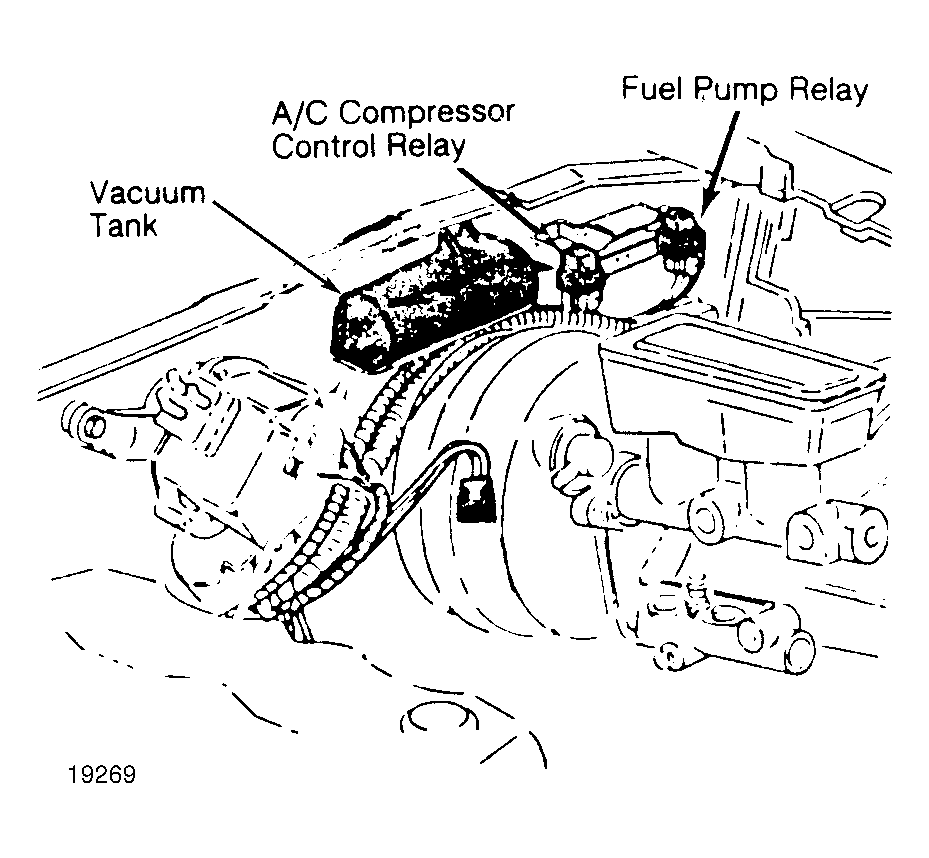

| A/C Compressor Relay | Left cowl near brake booster. See Figure. |
| Choke Relay | In convenience center. See Figure. |

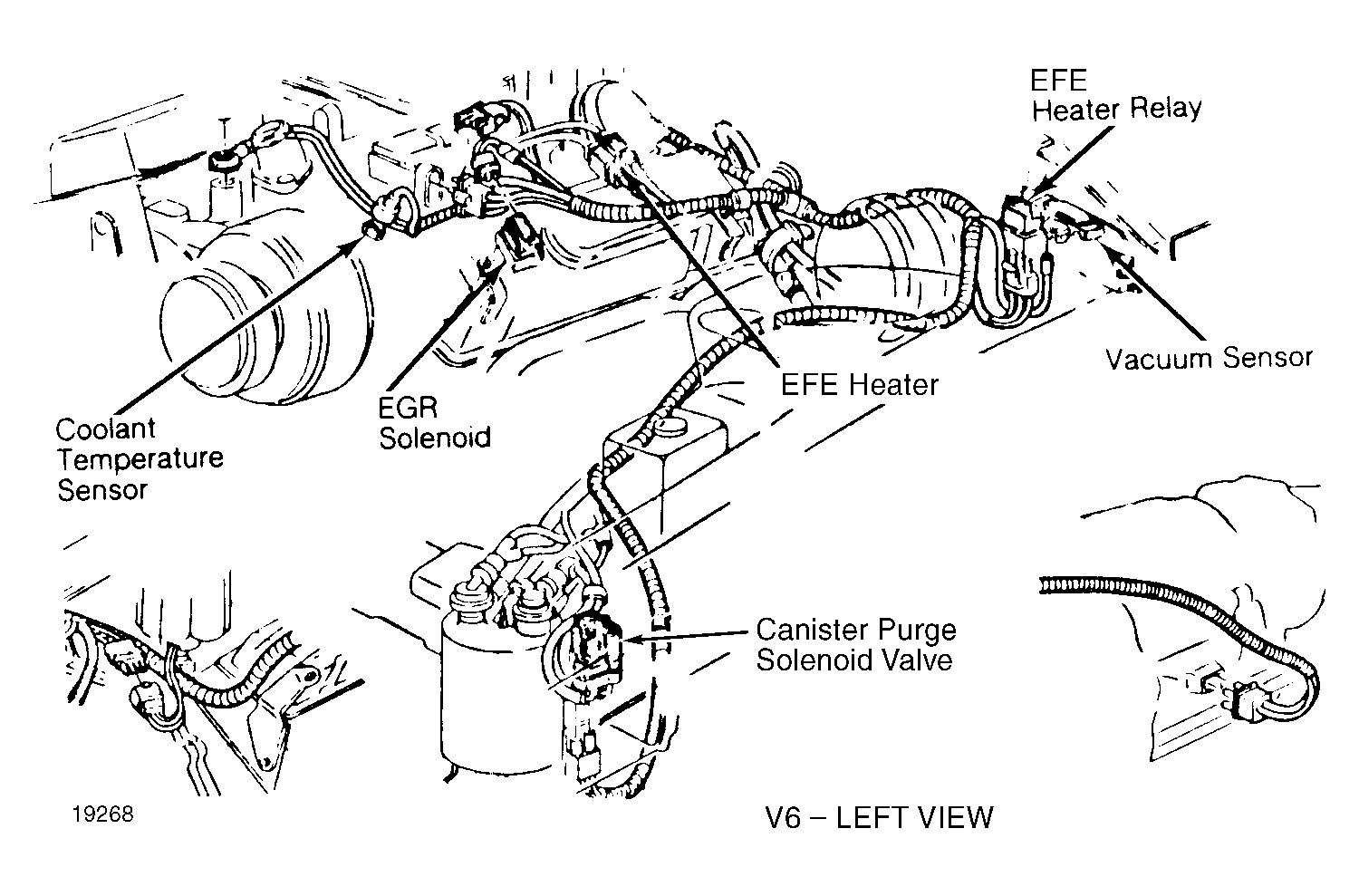

| EFE Heater Relay | Upper left side of engine cowl. See Figure. |

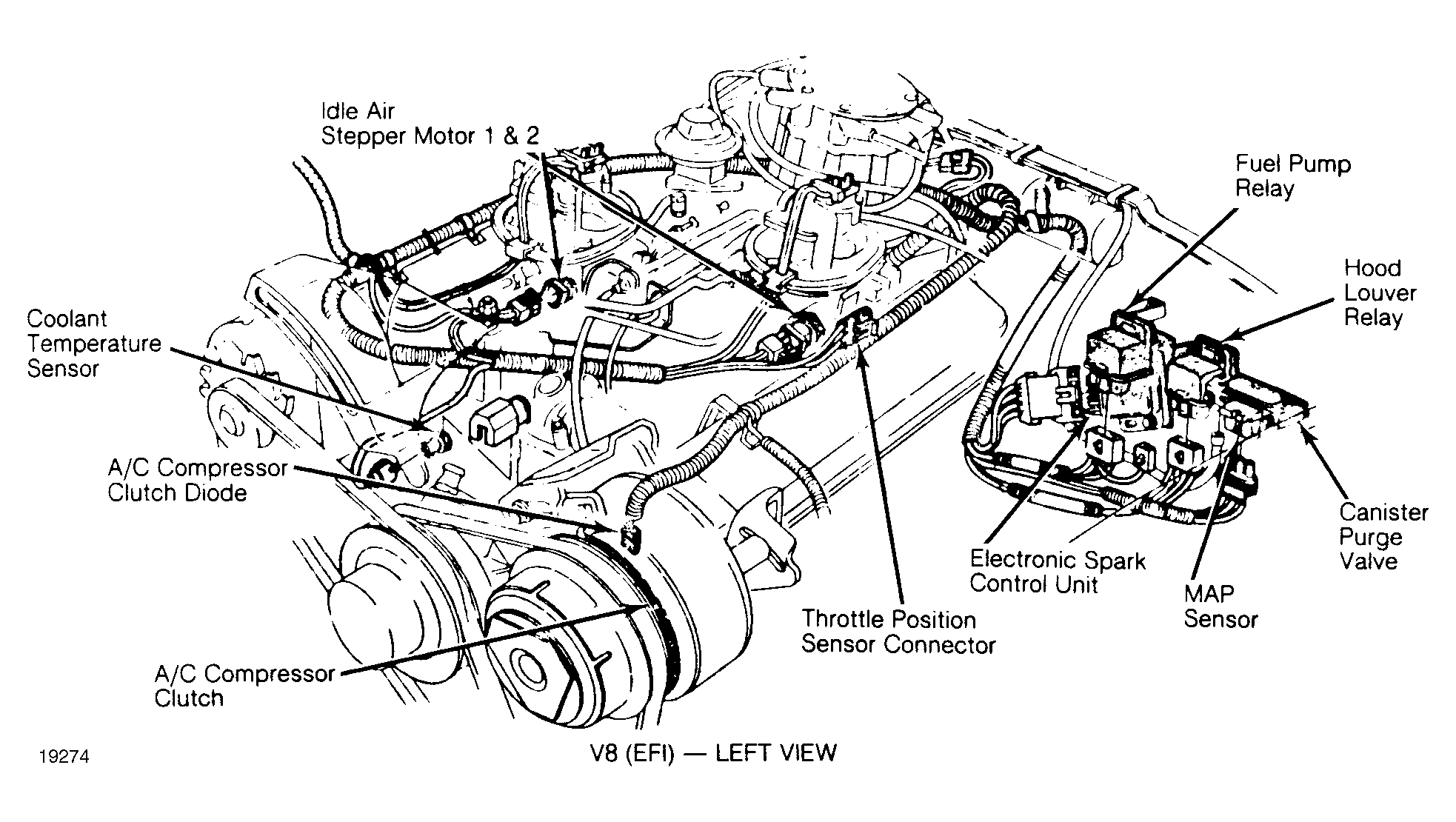

| Fuel Pump Relay | Left side of engine cowl. See Figure & Figure . |
| Hatch Release Relay | Under forward part of console. |

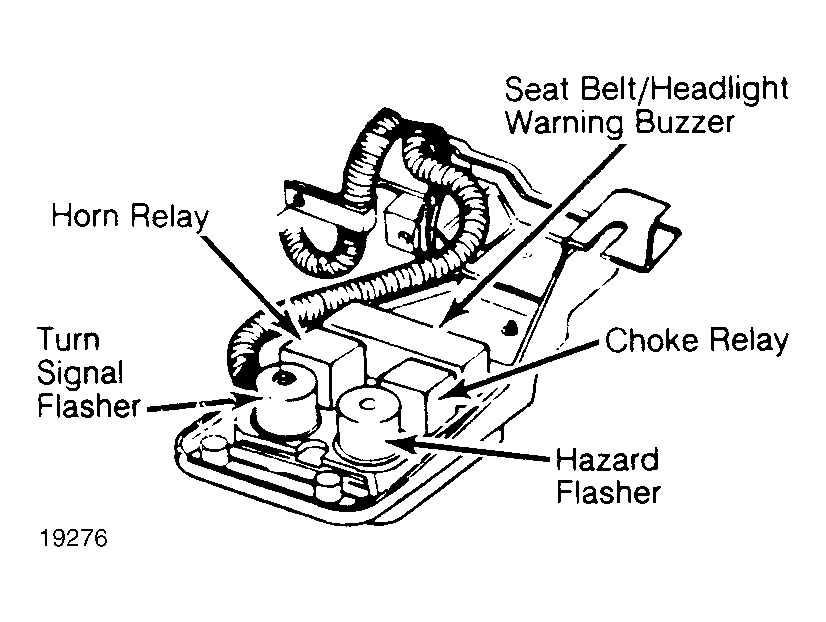

| Hazard Flasher | In convenience center. See Figure. |
| Headlight Warning Buzzer | In convenience center. See Figure. |
| Hood Louver Relay | Left side of engine cowl. See Figure. |
| Horn Relay | In convenience center. See Figure. |

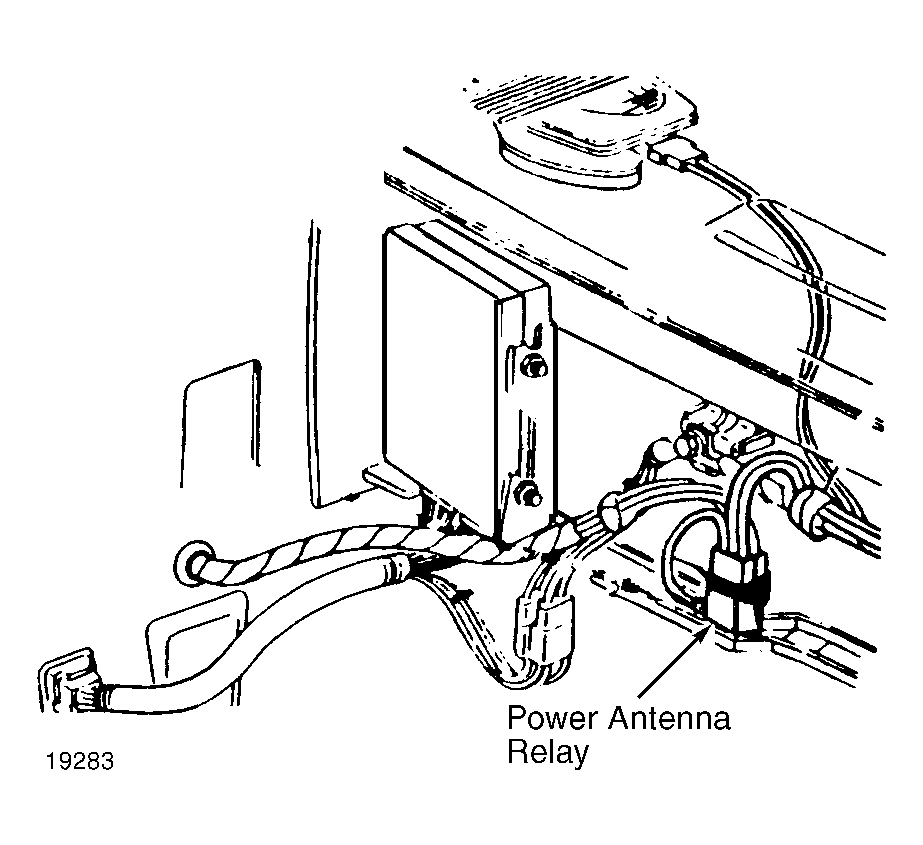

| Power Antenna Relay | Behind right side of instrument panel lower cover. See Figure. |
| Seat Belt Warning Buzzer | In convenience center. See Figure. |
| Throttle Kicker Relay (V8) | Left side of engine cowl. |
| Turn Signal Flasher | In convenience center. See Figure. |
