LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
1983
>>
Blazer 5.0 H, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
Vacuum Sensor Output Check
Vacuum Sensor Output Check

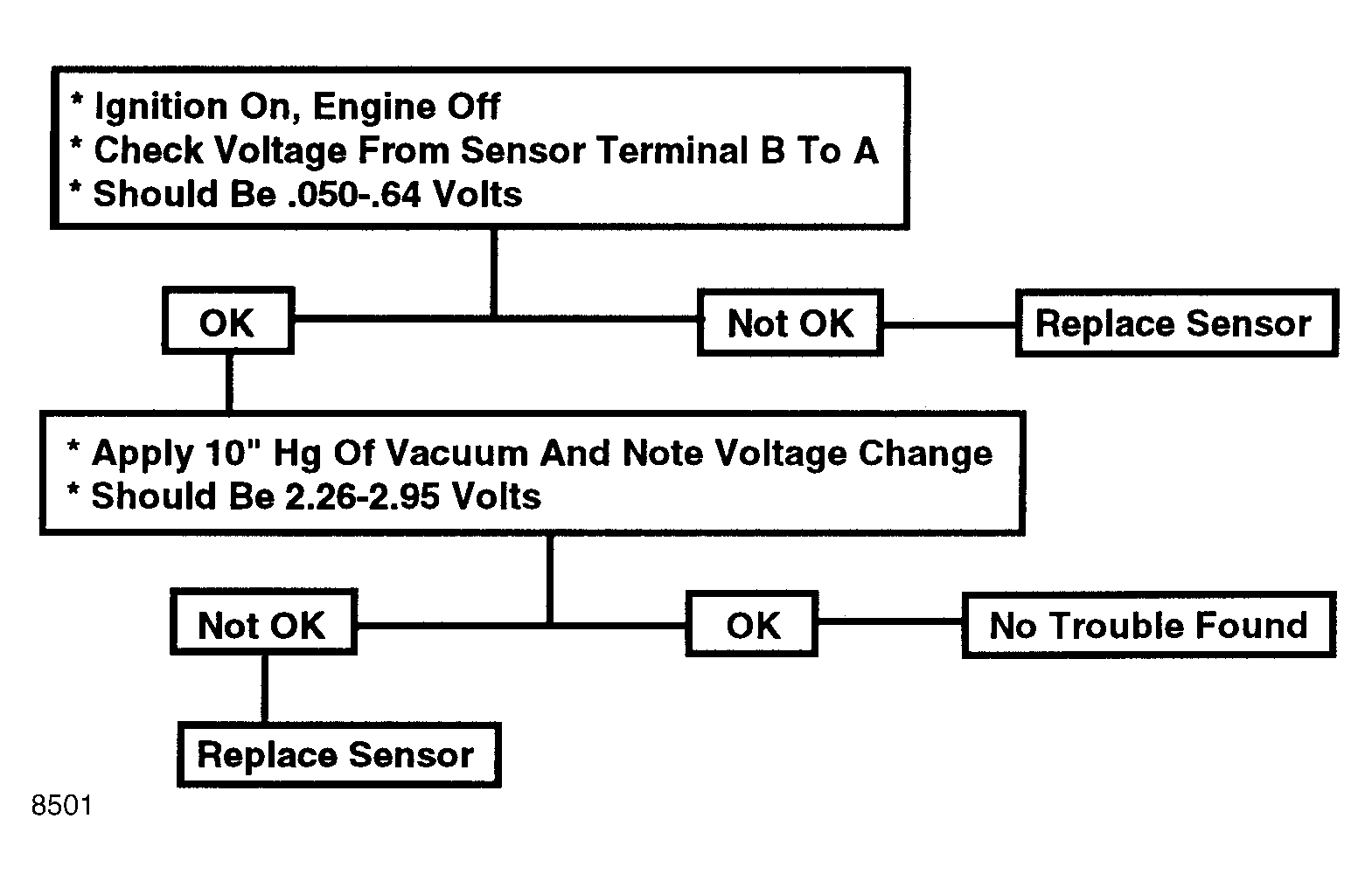

Fig 1: Flow Chart - Vacuum Sensor Output Check
Fig 2: Flow Chart - Vacuum Sensor Output Check
