Code 41 - No Specific Reference

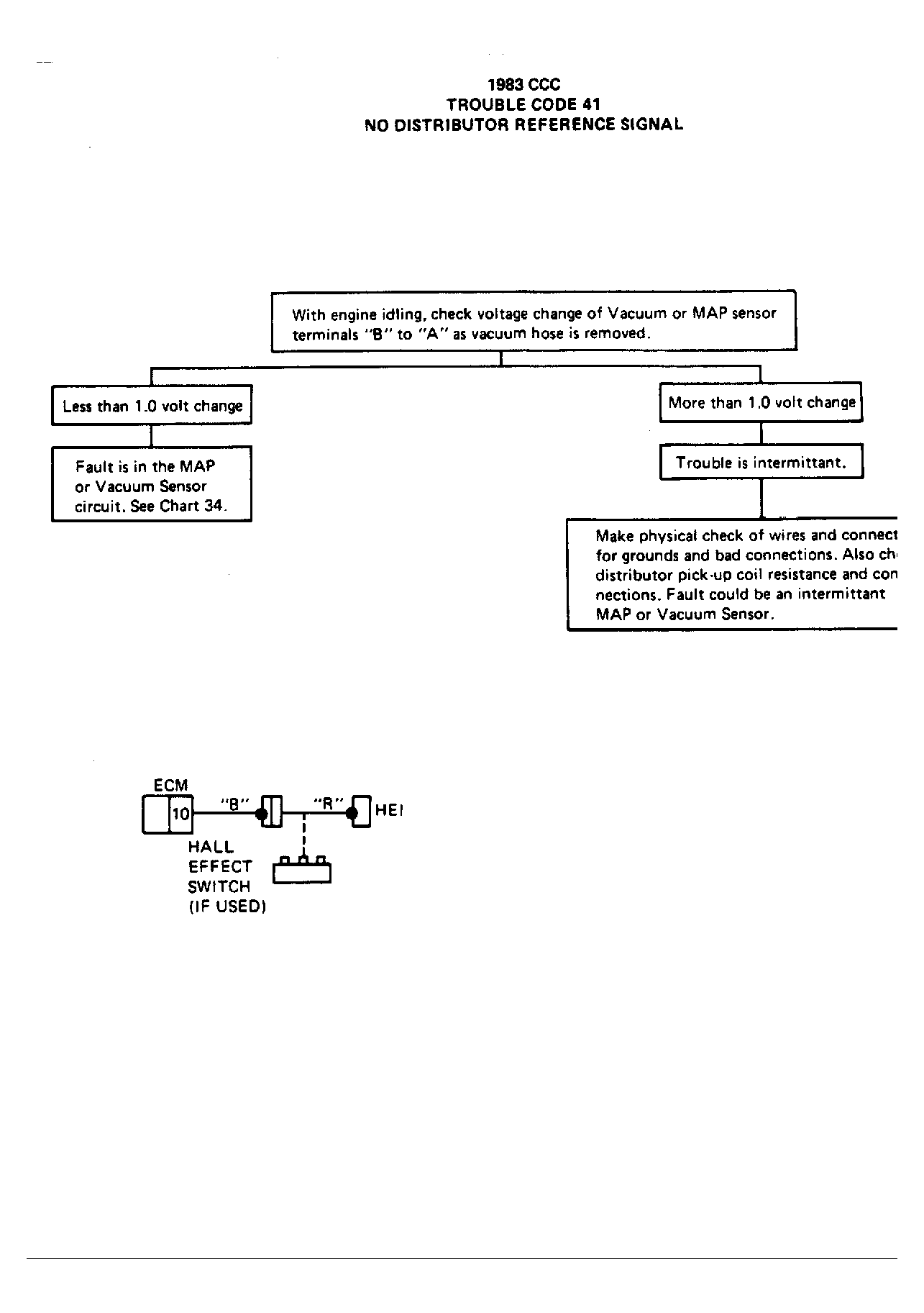

Fig 1: Flow Chart, Code 41 - No Distributor Reference Pulses at Specific Engine RPM

G8516

Fig 2: Flow Chart, Code 41 - No Distributor Reference Pulses at Specific Engine RPM

GB0048242
