Home
>>
Chevrolet
>>
1983
>>
Blazer 5.0 H, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
Code 14 - Shorted Cts Circuit
Code 14 - Shorted Cts Circuit

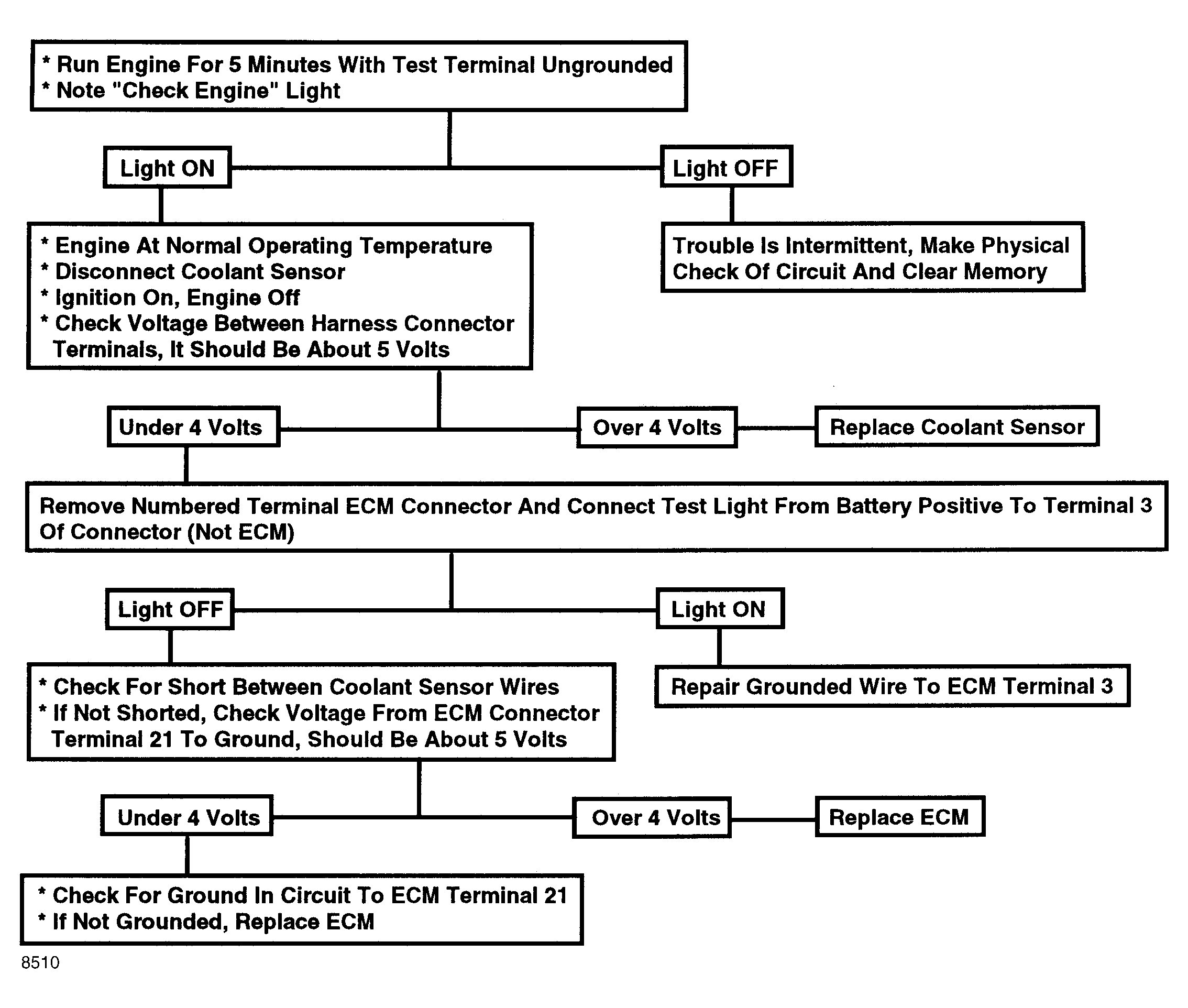

Fig 1: Flow Chart, Code 14 - Shorted Coolant Temp. Sensor (CTS) Ckt
Fig 2: Flow Chart - Code 14 - Shorted Coolant Temp. Sensor (CTS) Circuit
