Diverter Valve Check

Fig 1: Flow Chart - Divert Valve Check

G251

Fig 2: Flow Chart - Divert Valve Check (1 Of 2)

GB0046395

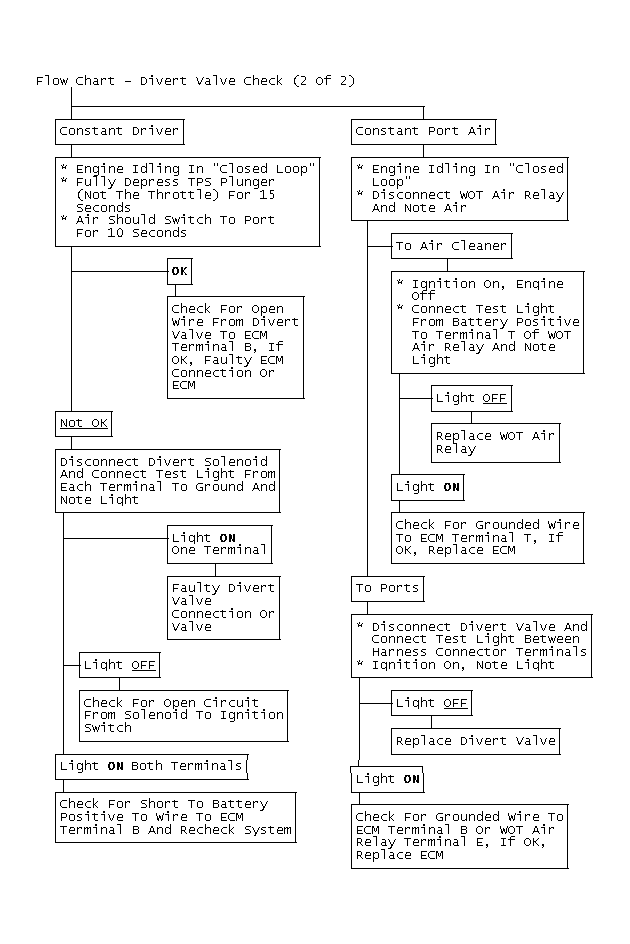

Fig 3: Flow Chart - Divert Valve Check (2 Of 2)

GB0046396
