Feedback Carburetor Component Test
>>
Air Management Check
Air Management Check

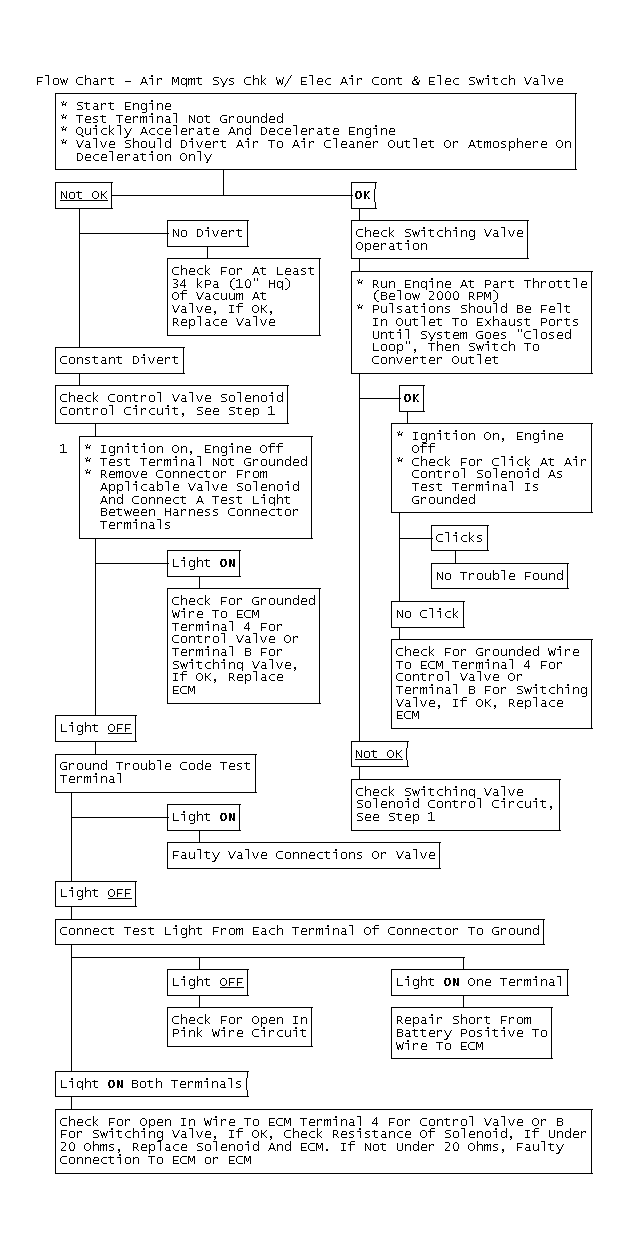

Fig 1: Flow Chart - Air Mgmt Sys Chk W/ Elec Air Cont & Elec Switch Valve

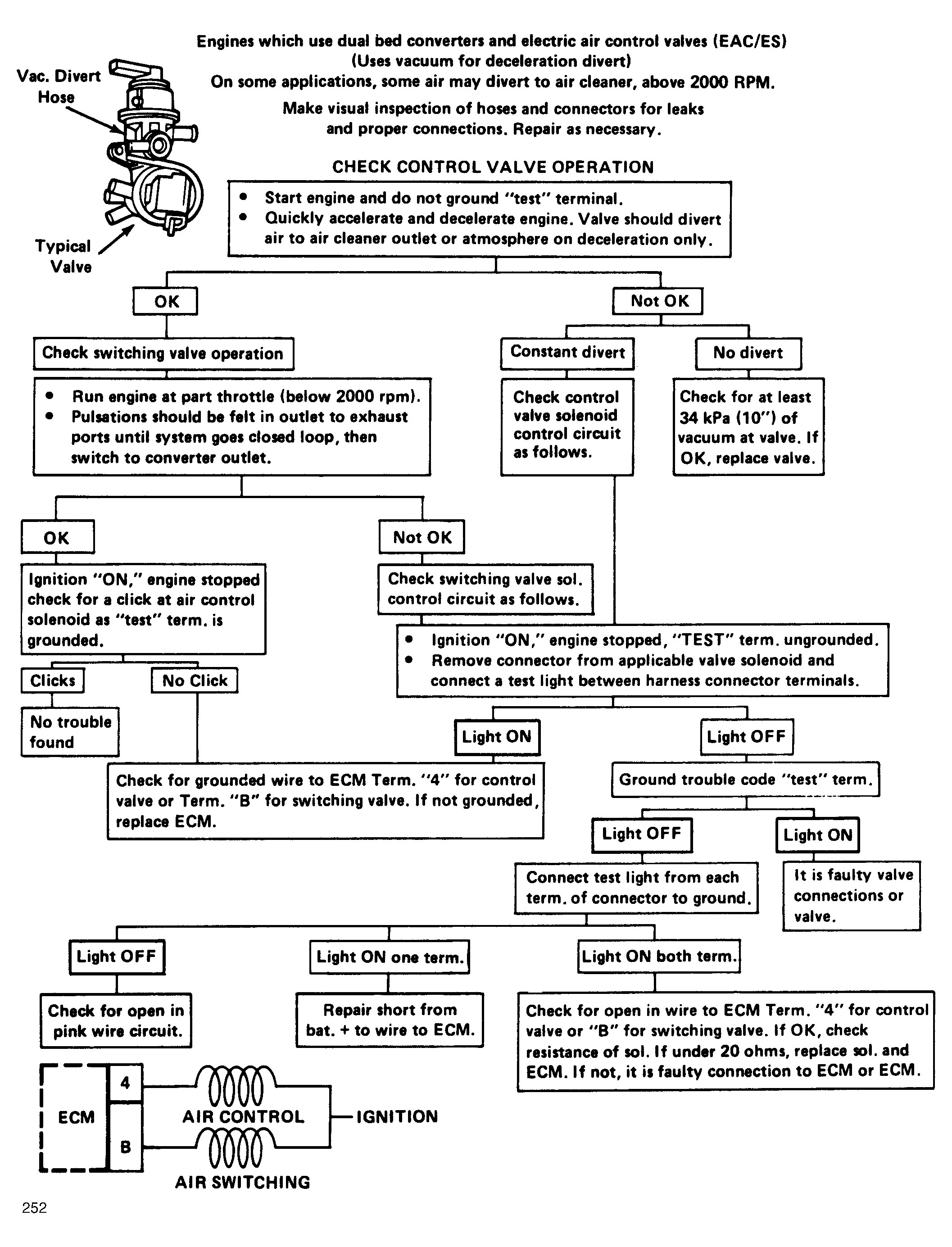

Fig 2: Flow Chart - Air Mgmt Sys Chk W/ Elec Air Cont & Elec Switch Valve
