Fuel Meter Cover

  1. Remove 5 cover-to-meter body screws and lock washers. Lift off fuel meter cover with fuel pressure regulator assembly attached. Remove cover gaskets. See Fig 1 .
    NOTE: Do not remove screws attaching pressure regulator to fuel meter cover. The pressure regulator includes a spring under heavy tension which may cause personal injury if released. Fuel meter cover and pressure regulator are serviced as an assembly only. Do not immerse cover and regulator assembly in any type of cleaning solvent.
  2. Remove fuel pressure regulator dust seal from fuel meter body.

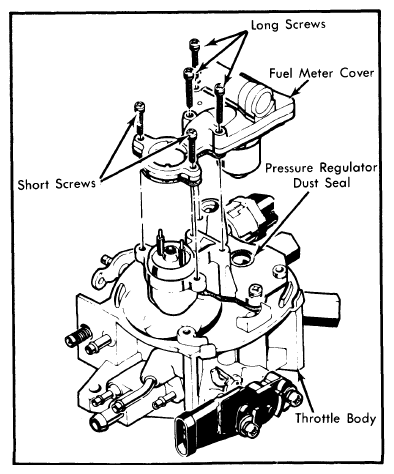

    Fig 1: Removing Fuel Meter Cover Assembly
    G09315791Courtesy of GENERAL MOTORS COMPANY
