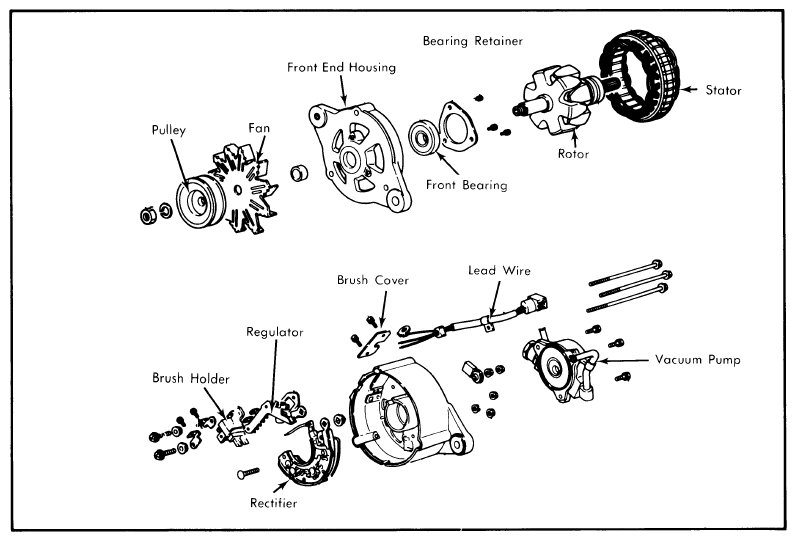

Alternators & Regulators: Overhaul: Reassembly
To assemble, reverse removal procedure and note the following: Protect all parts from heat damage when resoldering connections. Apply tape to rear end of stator shaft when installing rear end housing to protect oil seal. Check for freedom of shaft rotation after tightening through bolts.
