Ignition System Trouble Shooting
>>
Ignition System Trouble Shooting
Ignition System Trouble Shooting

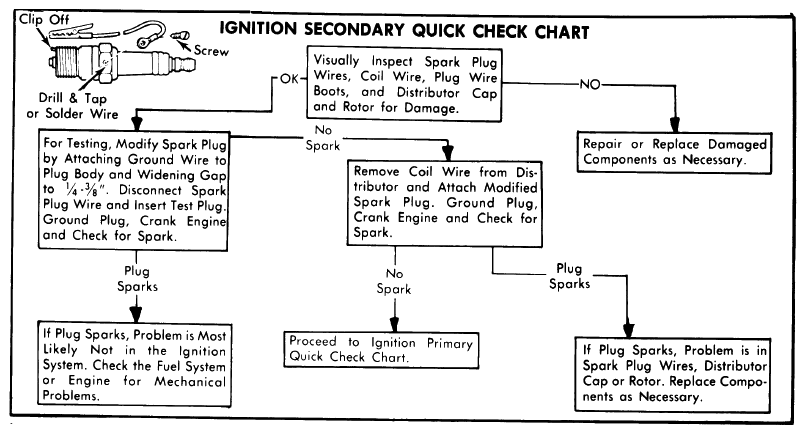

Fig 1: IGNITION SECONDARY QUICK CHECK CHART
Courtesy of GENERAL MOTORS COMPANY

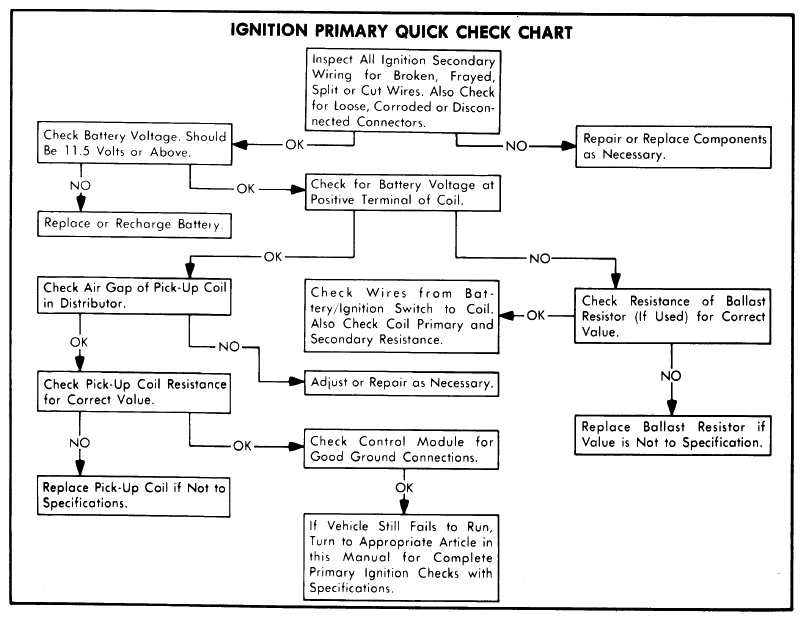

Fig 2: IGNITION PRIMARY QUICK CHECK CHART
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
