Choke Unloader
- Install choke coil in housing and index properly.NOTE: Install choke is warm, cool down to point where choke valve will close fully.

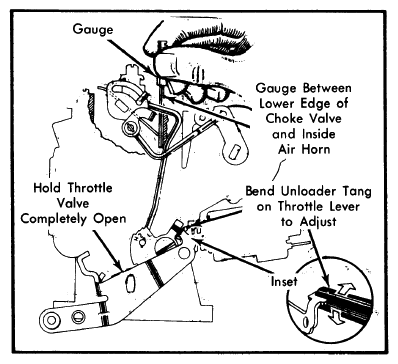

- Hold throttle valve wide open. Measure specified clearance between lower edge of choke valve and air horn wall.
- Measurement can be made using a specified drill or pin gauge. If adjustment is required, bend choke unloader tang to achieve proper clearance.
