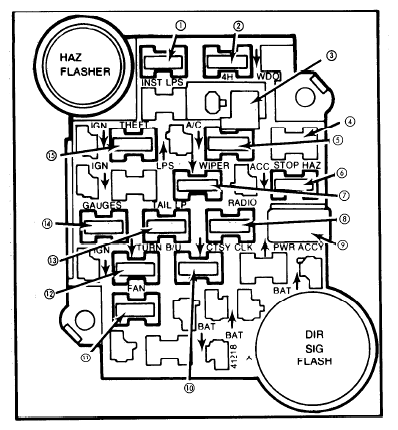

Citation Fuse Block Circuits
- 5 amp. (Tan)
Instrument illumination and lights on reminder.
- 20 amp. (Yellow)
Choke heater and cooling fan.
- 30 amp.
Circuit breaker. Power windows.
- 25 amp. (White)
Air conditioning blower and compressor, and heater.
- 10 amp. (Red)
Electronic Control Module.
- 20 amp. (Yellow)
Hazard and stop lights.
- 30 amp.
Circuit breaker. Power door locks, power seats and rear window defogger.
- 20 amp. (Yellow)
Air conditioning anti-dieseling relay, cigar lighter, clock, courtesy lights, horn, ignition key warning, lights on reminder, power door locks and power antenna, trunk and vanity mirror lights and computer command control.
- 10 amp. (Red)
Radio and cruise control.
- 25 amp. (White)
Windshield wiper/washer and wiper/washer delay.
- 20 amp. (Yellow)
Fast idle control, back-up and turn signal lights.
- 20 amp. (Yellow)
Air conditioning anti-dieseling relay, brake warning indicator, choke heater, rear window defogger, fuel gauge, gauges, idle stop solenoid, lights on reminder, seat belt warning, warning indicators, charge indicator and computer command control.
- 20 amp. (Yellow)
Front and rear parking and marker lights, and license lights.
