Wheel Alignment (Inspection): CHEVROLET: Camber: Citation

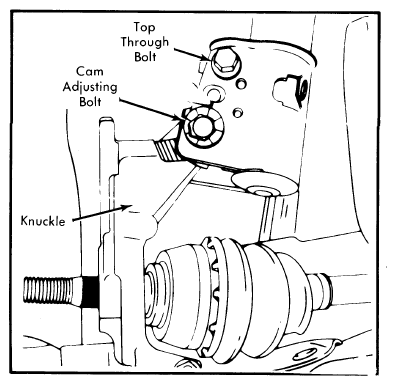

To adjust camber, loosen nuts on cam and through bolts, then rotate cam bolt to move upper knuckle in or out. Cam must be seated between inner and outer guide surfaces. Check camber and tighten nuts to 140 ft.lbs.
NOTE:
Top bolt must be loose whenever camber is adjusted or damage to outer cam guide may occur.
