Seat Assembly: Installation

To install, reverse removal procedure.

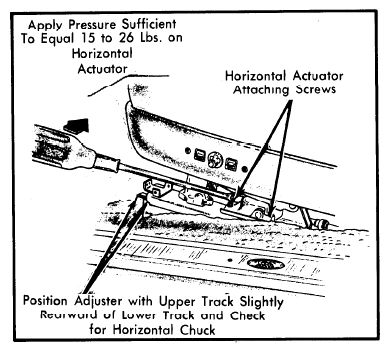

Fig 1: Horizontal Actuator Adjustment
G09317020Courtesy of GENERAL MOTORS COMPANY

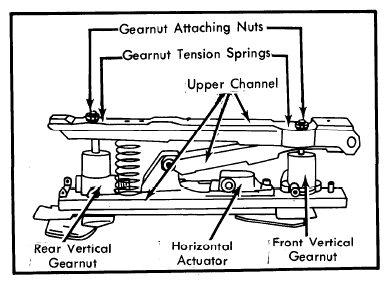

Fig 2: 6-Way Seat Adjuster Mechanism
G09317021Courtesy of GENERAL MOTORS COMPANY
