Poor Driveability

Rubber hose deteriorated. Hose particles entering carburetor causing poor driveability. Clean carburetor. Replace air valve.

NOTE: For diagrams of vehicles using PAIR system, see General Motors Vacuum Diagrams in this section.

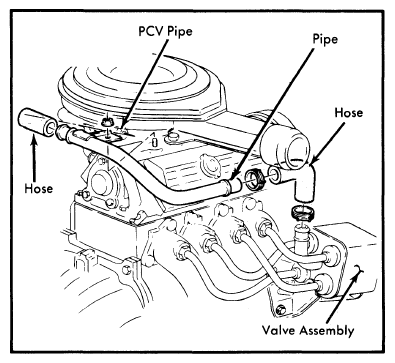

Fig 1: Showing Typical Installation of PAIR Valve Pipe and Hose (Chevette Shown; Others Similar)
G09317912Courtesy of GENERAL MOTORS COMPANY
