Steering Columns: Description

Column is fastened to steering gear through a flexible coupling. The energy-absorbing shaft will collapse during frontal impact under predetermined loads, by shearing plastic pins.

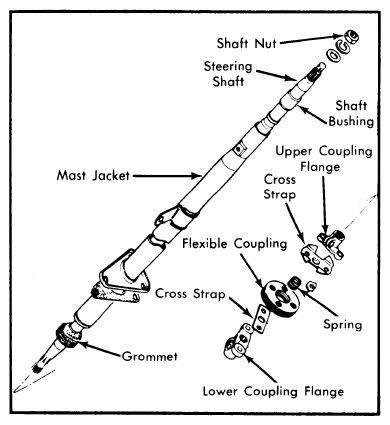

Fig 1: Exploded View of Steering Column Assembly
G09356618Courtesy of GENERAL MOTORS COMPANY
