Check Valve

This one-way flow control directs air into air injection manifold from air pump. When exhaust system pressure is greater than air pump pressure, check valve closes to prevent exhaust gas from flowing back into air pump system and damaging components.

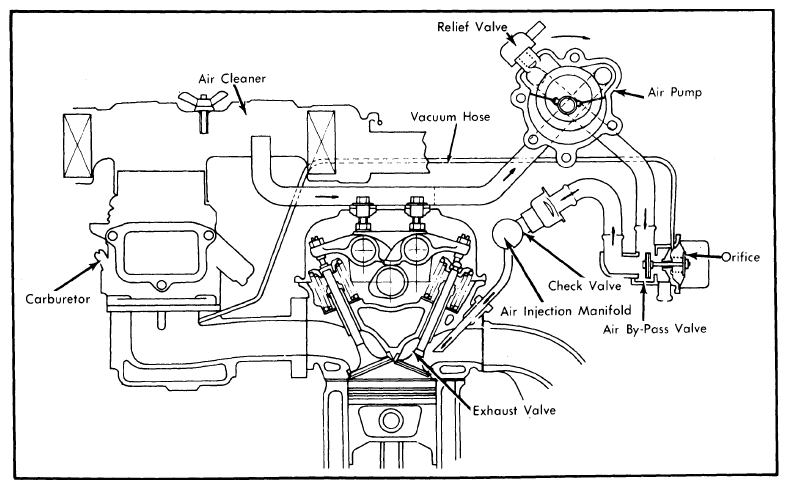

Fig 1: LUV Air Injection System for Federal Vehicles
G09324520Courtesy of GENERAL MOTORS COMPANY
