Base Ignition Timing Specifications

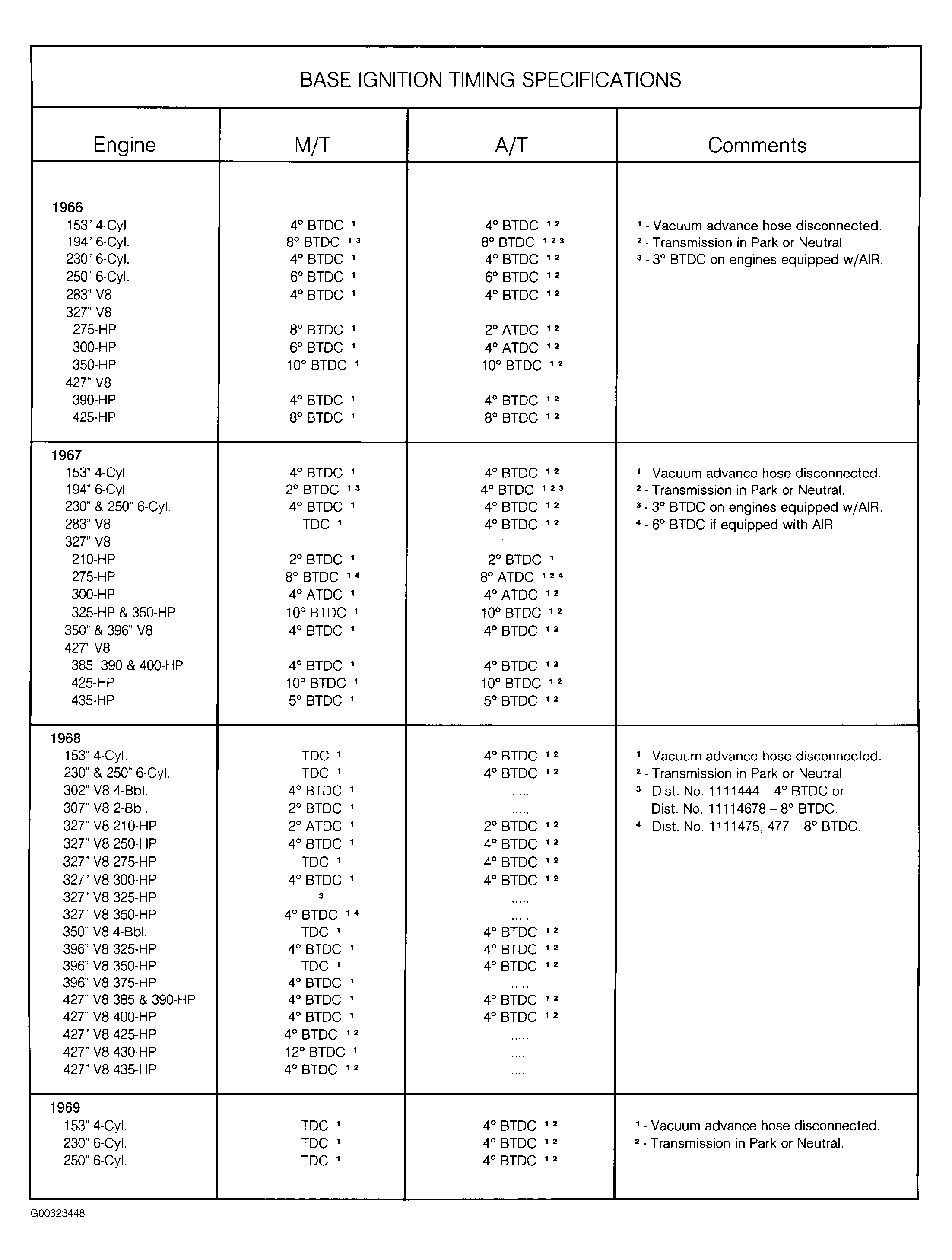

Fig 1:

G00323448

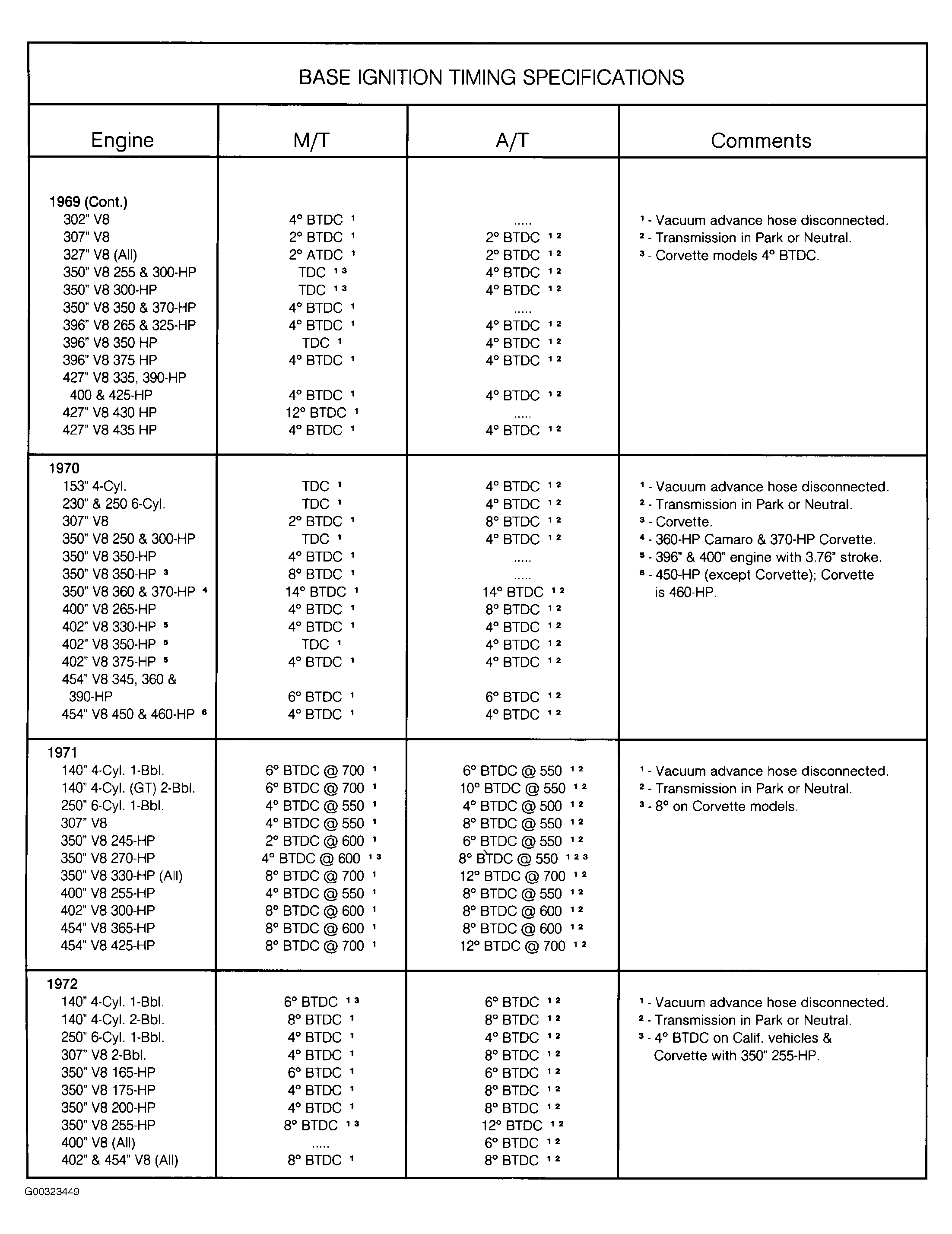

Fig 2:

G00323449

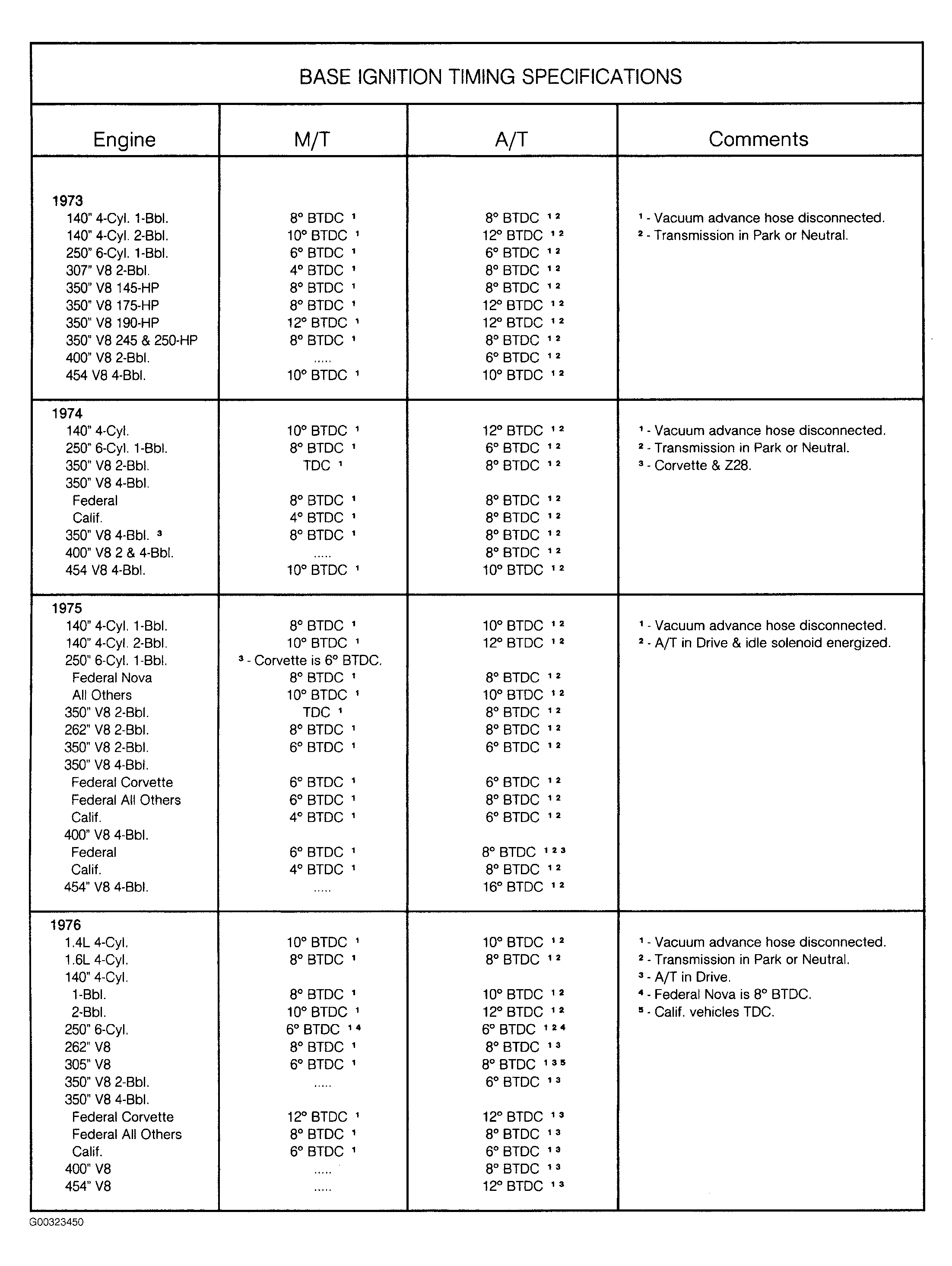

Fig 3:

G00323450

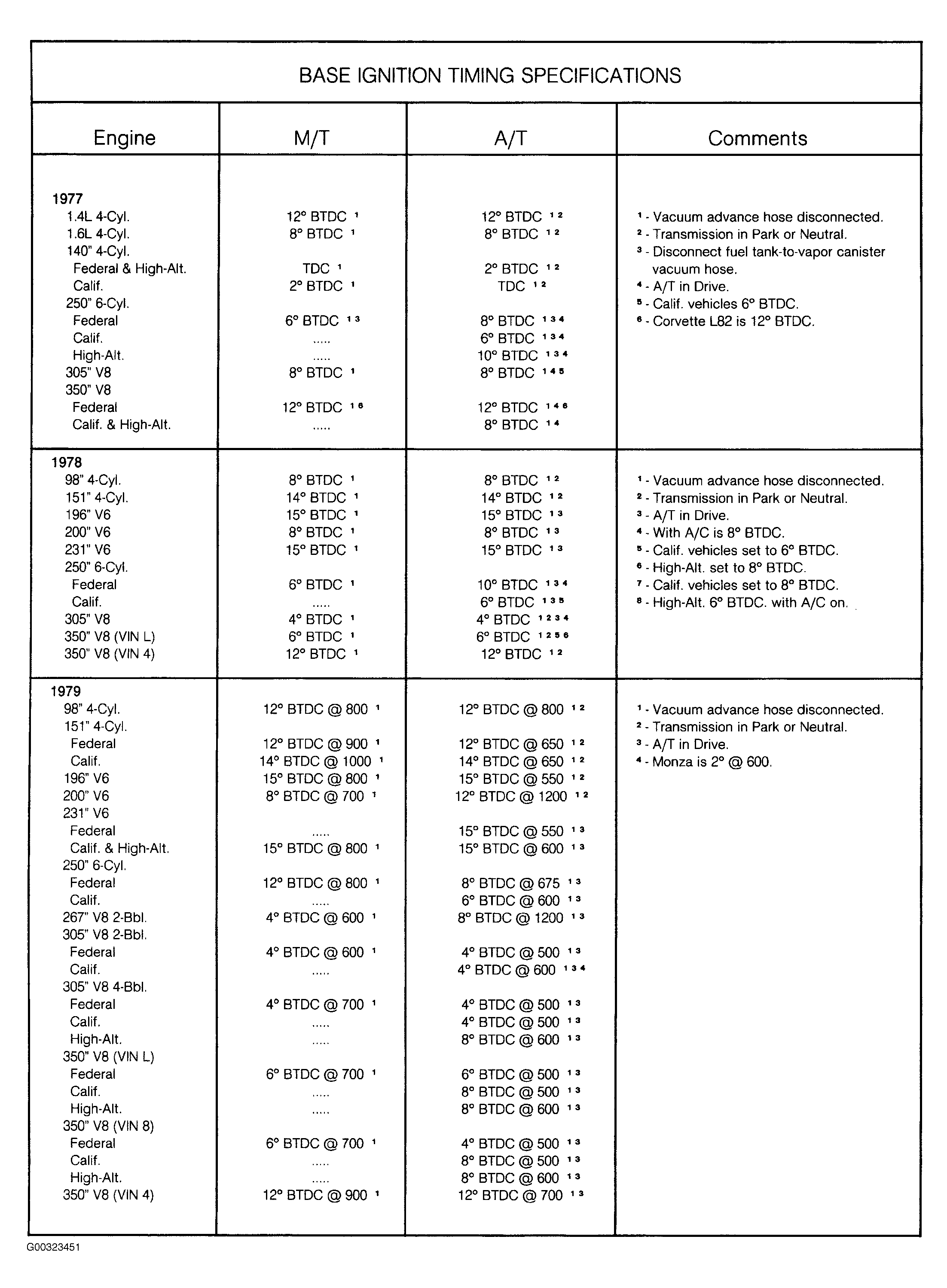

Fig 4:

G00323451

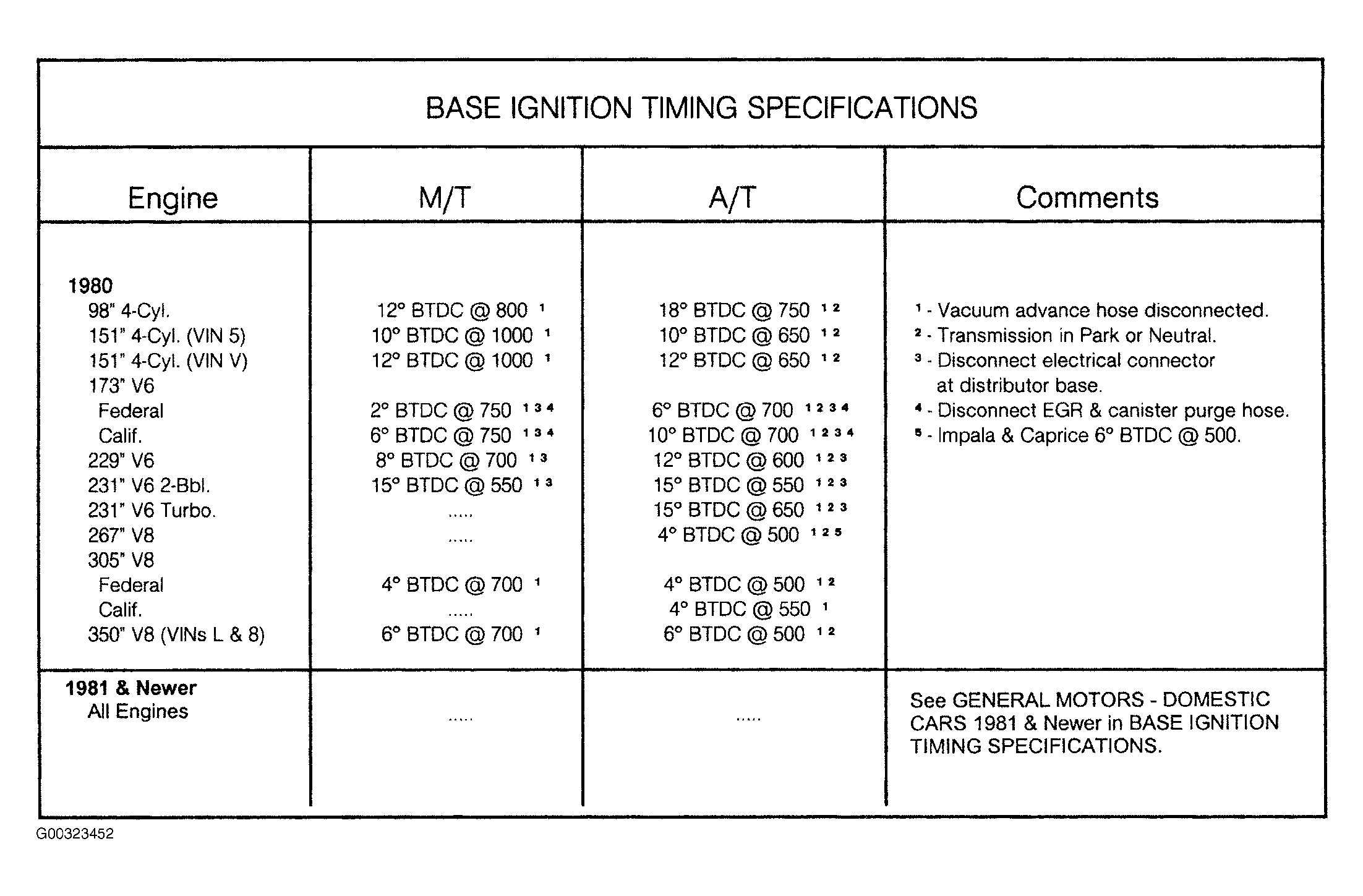

Fig 5:

G00323452
