Riding Height Specifications: Caster: Chevette

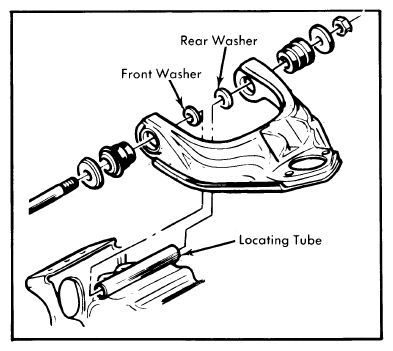

Adjust caster by realigning washers located between legs of upper control arm. See Fig 1.
NOTE:
Always use 2 washers with a combined thickness of 0.472". If a 0.12" washer is installed at front and 0.35" washer at rear it will change caster +1°. If reversed with.35" washer at front and.12" washer at rear it will change caster by -1°.
