Float Level

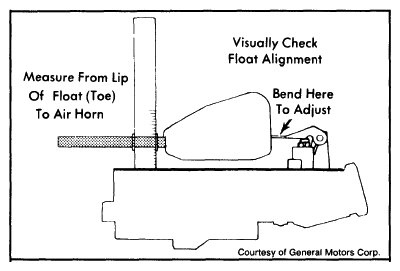

- Remove air horn, leaving gasket in place. Turn air horn upside-down. Allow weight of float to rest on top of needle. See Fig 1.
- Using "T" scale, measure distance from air horn gasket to index point at toe of float. If adjustment is needed, gently bend float arm up or down. Do not force needle against needle seat.
