Ignition Timing

With engine at normal operating temperature and idle speed set to 900 RPM, connect a timing light to No. 1 cylinder. Disconnect and plug distributor vacuum hose. Check timing with marks on crankshaft pulley and rotate distributor to adjust timing.

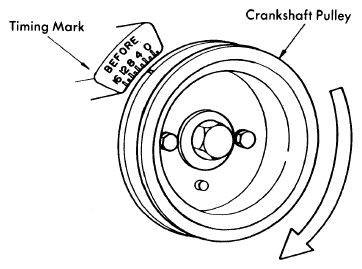

Fig 1: Typical Ignition Timing Mark Location

Courtesy of GENERAL MOTORS COMPANY
