Choke Unloader

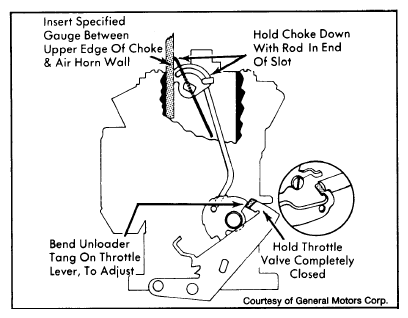

- Open throttle valve wide open. Apply light closing pressure to choke valve. Measure specified clearance between lower edge of choke valve and air horn wall. See Fig 1.
- Measurement can be made with a specified drill or pin gauge. To adjust, bend choke unloader tang.
