General Motors

Be sure lock cylinder is in "LOCK" position. Make certain switch is in "LOCK" position. Position switch on steering column making certain actuator rod end engages slot in switch slide. Install two mounting screws and tighten to 35 inch pounds.

CAUTION: Use only specified screws to mount ignition switch. Use of other or longer screws could interfere with impact-compression of column.

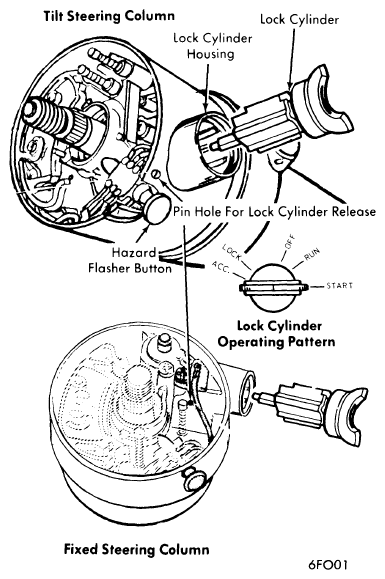

Fig 1: Ford Motor Co. Lock Cylinder
G09323666Courtesy of NOT AVAILABLE
