Wiring Diagrams

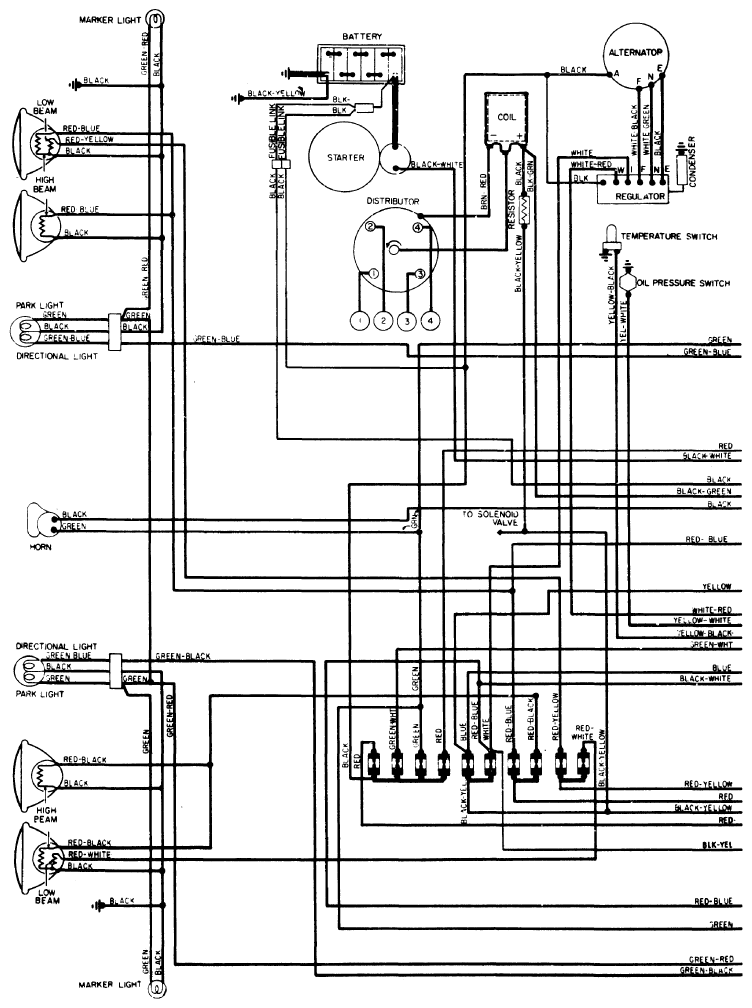

Fig 1: Wiring Diagrams - All Models (1 of 2)
G09302822Courtesy of GENERAL MOTORS COMPANY

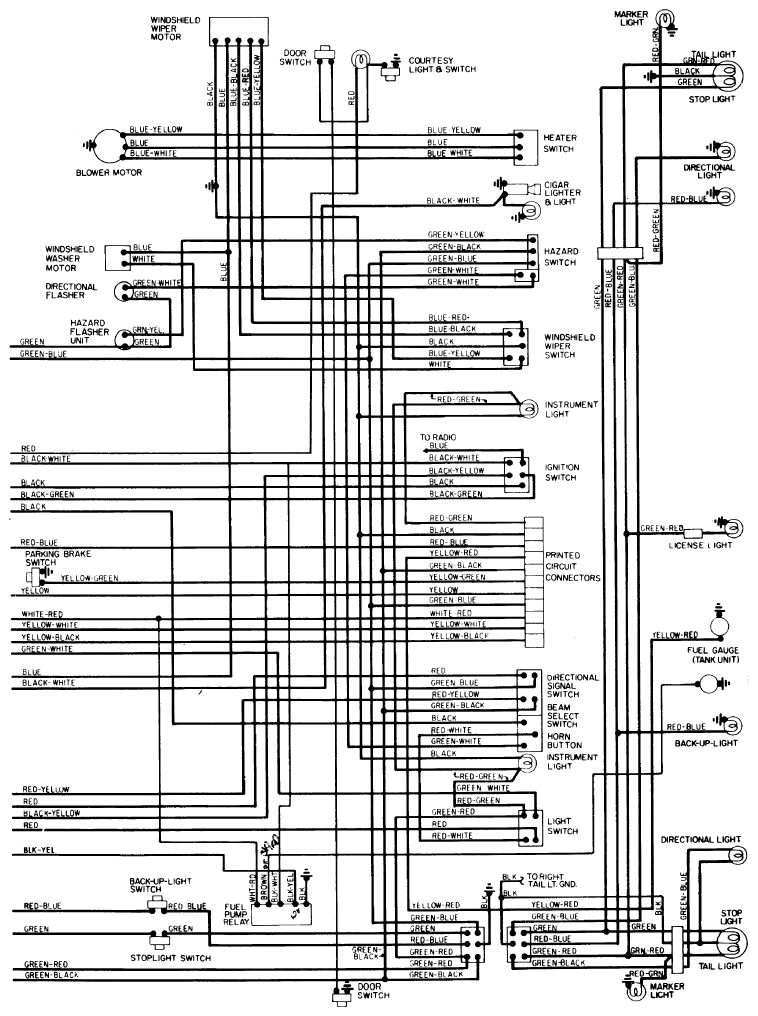

Fig 2: Wiring Diagrams - All Models (2 of 2)
G09302823Courtesy of GENERAL MOTORS COMPANY
