Float Level

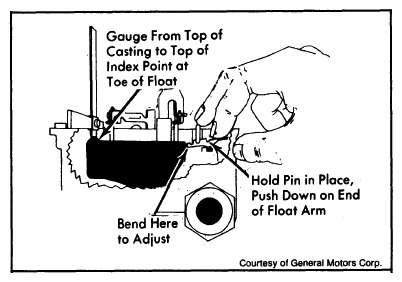

- Remove air horn. Hold float pin firmly in place. Push down on end of float arm against top of float needle. See Fig 1. With gasket removed, use a "T" scale to measure distance from top of casting to index point at toe of float.
- If adjustment is needed, gently bend float arm up or down. Do not force needle against needle seat to avoid damage. Install new gasket, replace air horn. Start engine and check for leaks.
