Float Level

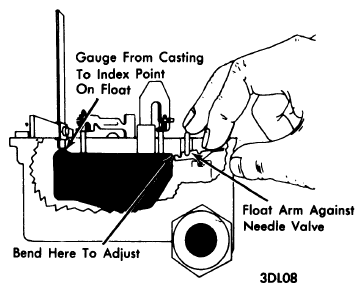

With air horn and gasket removed, hold float pin in place and push down on float arm at outer end against top of float needle. At a point 1/16" from end of float toe (not on radius), or at index point, measure distance from top of float at toe, or index point, to float bowl gasket surface. If distance is not as specified (see specifications ), adjust by bending float up or down at float arm junction.
