Mode Shift Door

NOTE: Adjustment required only when unit has been replaced.

Adjust mode door without vacuum applied to diaphragm. Door should be open I" from point where it seals against air distributor opening within case.

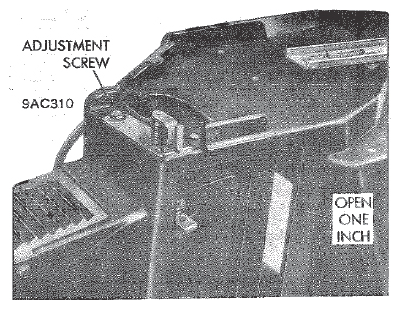

Fig 1: Mode Door Shift Adjustment
G09310850Courtesy of GENERAL MOTORS COMPANY
