Metering Rod

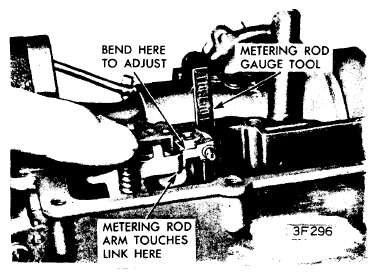

With throttle valve held tightly closed, remove metering rod and install correct metering rod gauge (see "Specification Table ") in metering jet. Push down on pump diaphragm rod until metering rod arm just touches lifter link. At this point metering rod arm pin should just contact top gauging surface of tool. To adjust, bend metering rod arm at undercut portion. Remove gauge and reinstall metering rod.
