Float Drop

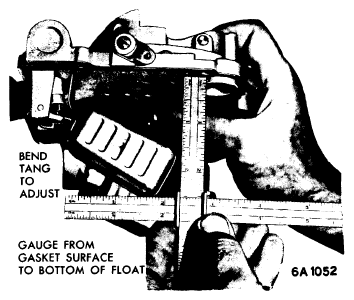

Hold air horn upright with floats hanging freely (air horn gasket must be in place). Measure distance from gasket surface to bottom of float at free end (see Fig 1). If float drop not correct (see Specifications), adjust by bending float arm tang as necessary.
NOTE:
If float drop measurement made to top of float at free end, see Specifications Table footnote for correct setting.
