Float Level (Plastic Floats)

Invert air horn assembly with gasket in place, measure distance from gasket face to lip on free end of float (see Fig 1). If this distance not correct (see Specifications ), adjust by bending float arm as shown.

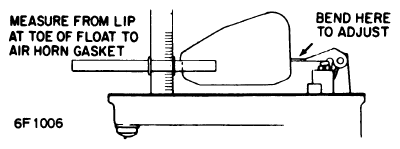

Fig 1: 3A FLOAT LEVEL ADJUSTMENT (PLASTIC FLOATS)

Courtesy of GENERAL MOTORS COMPANY
