Automatic Choke (2GC Carbs.): Notes

Loosen three retaining screws on thermostat cover, then rotate cover until index mark is in alignment with correct mark on housing as indicated in specification table. Tighten cover retaining screws.

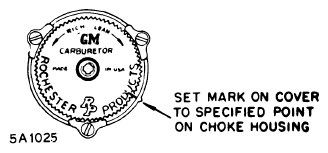

Fig 1: AUTOMATIC CHOKE ADJUSTMENT (2GC)

Courtesy of GENERAL MOTORS COMPANY
