Trailer Lamp Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

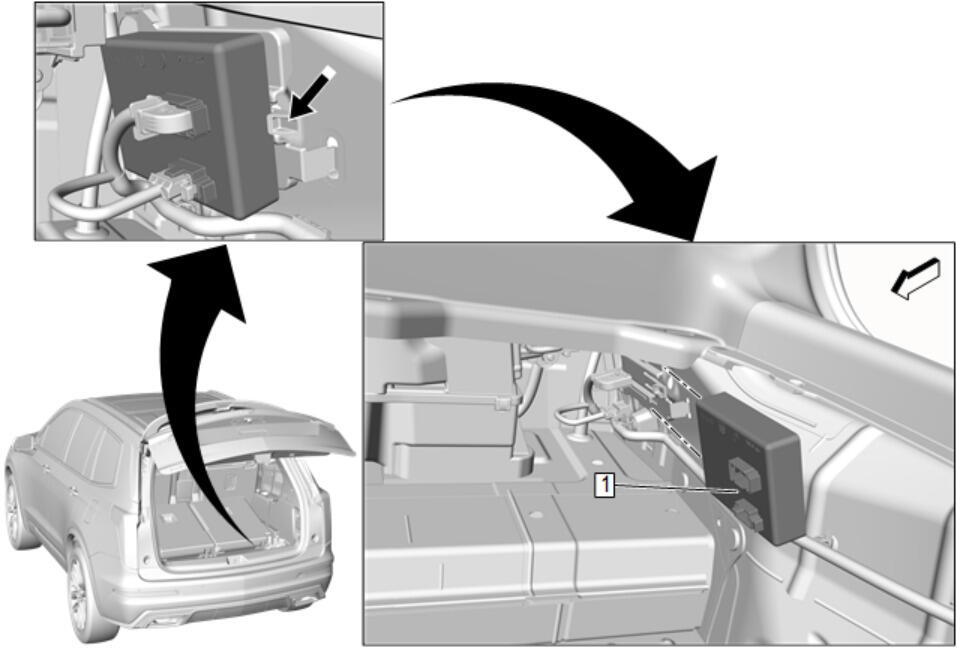

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Stowage Compartment Divider Replacement
1	Trailer Lamp Control Module Procedure Release the retaining tab. Disconnect the electrical connector. After installation, program the trailer lamp control module. Control Module References

Callout

Component Name

Trailer Lamp Control Module

Procedure

Release the retaining tab.
Disconnect the electrical connector.
After installation, program the trailer lamp control module. Control Module References
