Accessory AC and DC Power Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

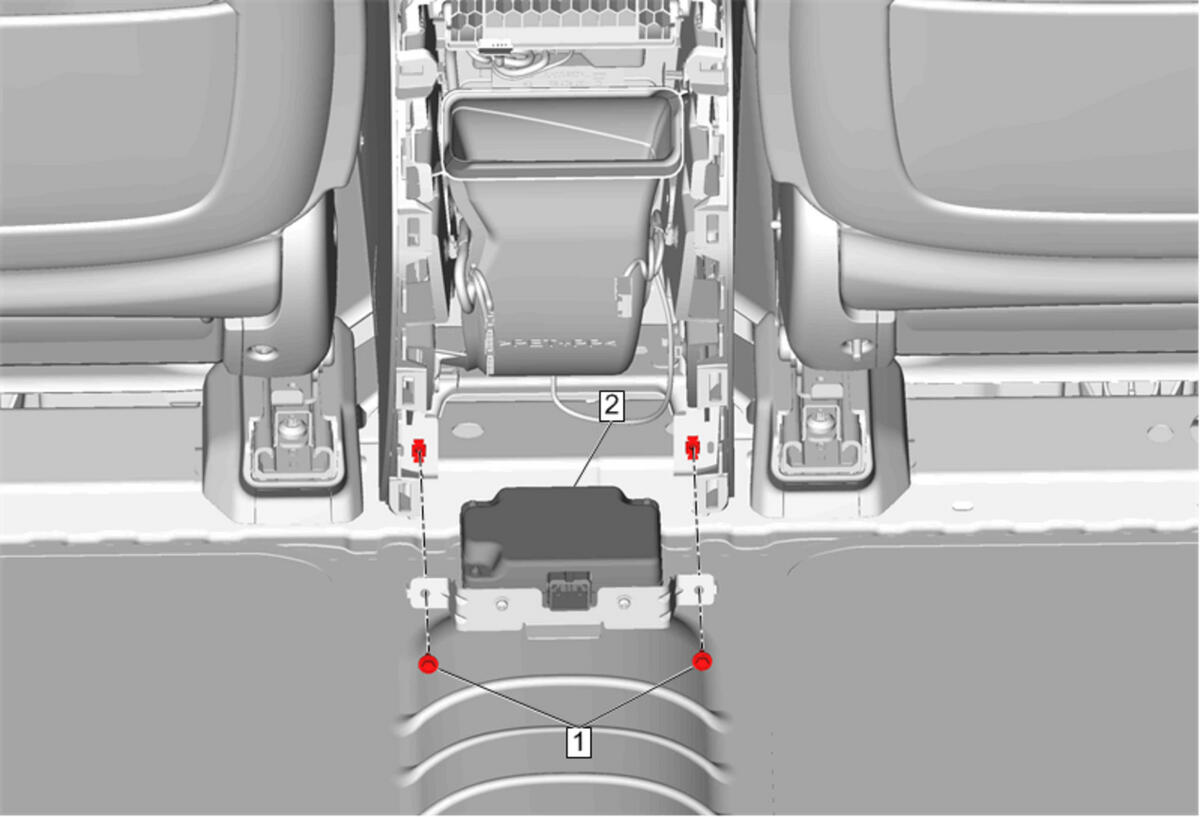

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection Front Floor Console Rear Trim Panel Replacement Reposition the carpet, if necessary.
1	Accessory AC and DC Power Control Module Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary Procedures

Accessory AC and DC Power Control Module Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connector.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
