Vehicle Stability Control System Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

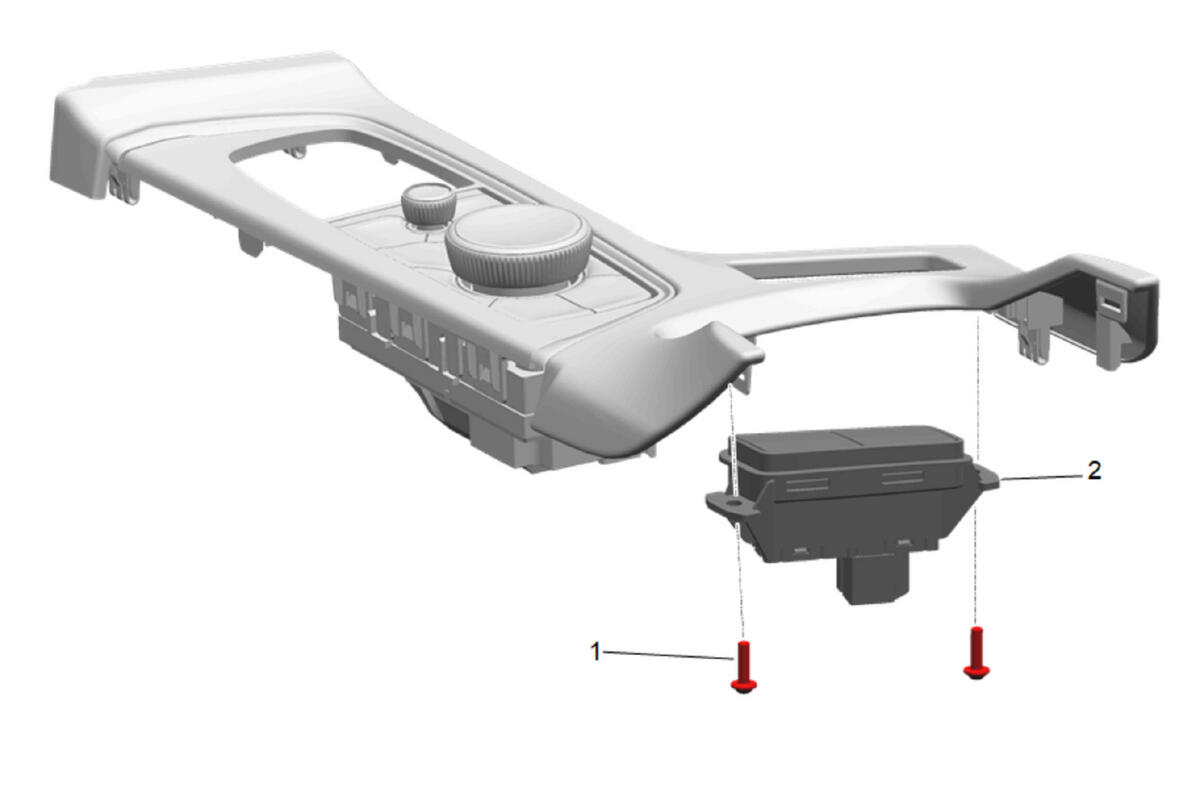

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures  Front Floor Console Trim Plate Replacement
1	Vehicle Stability Control System SwitchFastener [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Vehicle Stability Control System Switch
