Installation Procedure
Vehicle Dynamic Sensor (2) - Install
- Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
- Connect the electrical connector.
- NOTE:
Some components not shown for graphic clarity.

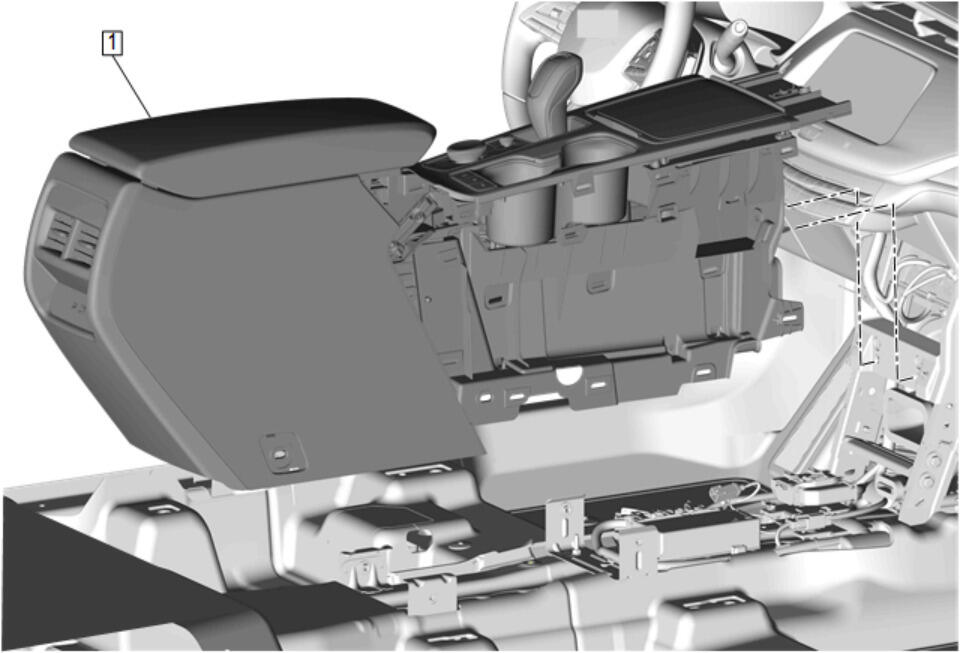

With the aid of an assistant, position the front floor console (1) into the vehicle. Front Floor Console Replacement
- Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
CAUTION:
Refer to Fastener Caution .
