Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

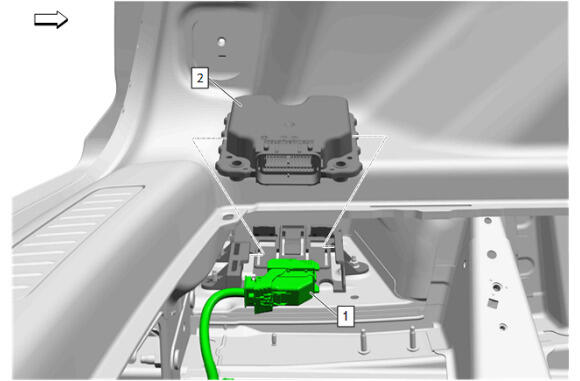

Electronic Suspension Control Module (2) - Install
Ensure that the electronic suspension control module (2) is completely seated and the electronic suspension control module bracket tabs are fully engaged.
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

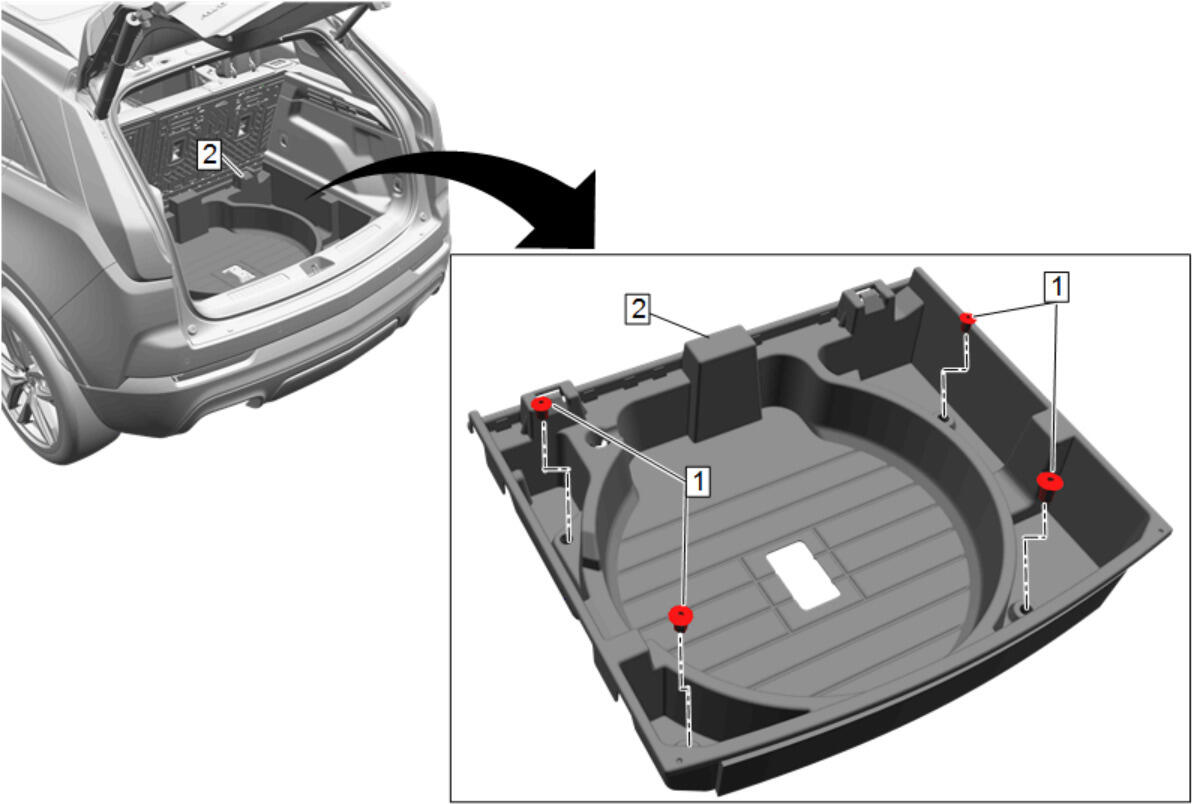

Rear Compartment Floor Stowage Trim Compartment (2) - Install - Rear Compartment Floor Stowage Trim Compartment Replacement
Perform the necessary programming and setup procedure: Control Module References
